114X2208

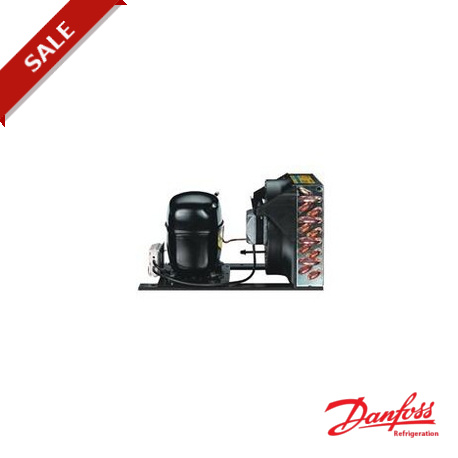

114X2208 DANFOSS REFRIGERATION OP-MCHC004TLA00G (TL4DLXN0) CONDENS. UNI
$0.00USD
3553 in stock
Key Specifications
Region:Africa; Asia; Europe; Middle East; Pacific
DLLP_CU:5
K limit:47.9
Version:A00
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Region | Africa; Asia; Europe; Middle East; Pacific |
| DLLP_CU | 5 |
| K limit | 47.9 |
| Version | A00 |
| • Ebox | 118U0049 |
| Type Code | Optyma™ |
| Net weight | 13.53 Kg |
| Width [mm] | 304 |
| Length [mm] | 446 |
| Refrigerant | R404A; R507 |
| Applications | MBP |
| Gross weight | 13.53 Kg |
| Model number | OP-MCHC004TLA00G |
| Segment usage | Medium Back Pressure |
| • Condenser | 118U0029 |
| • Fan blade | 118U0037 |
| • Fan motor | 118U0032 |
| Condenser type | BG_2 |
| Number of fans | 1 |
| • Compressor | 102U2038 |
| Electrical code | G |
| • Fan bracket | 118U0061 |
| Compressor model | TL4DL |
| Type designation | Condensing Units |
| Voltage 50Hz [V] | 220 |
| • Fan assembly | 118U0072 |
| Total height [mm] | 226 |
| • Fan cowl/grill | 118U0042 |
| • Starting relay | 117U6001 |
| Fan blade size [mm] | 200 |
| No. of phases (fan) | 1 |
| • Ebox Description | Ebox |
| Fan current @ 50Hz [A] | 0.19 |
| Fan current @ 60Hz [A] | 0.17 |
| Voltage 50Hz [V] [Max] | 240 |
| • Starting capacitor | 117U5014 |
| Air flow @ 50Hz [m³/h] | 420 |
| • Condenser Description | BG_2 |
| • Fan blade Description | Fan blade |
| • Fan motor Description | Fan motor |
| Fan power supply [V/Ph/Hz] | 230/1/50 |
| No. of phases (compressor) | 1 |
| Sound power @ 50Hz [db(A)] | 56 |
| • Compressor Description | TL4DL |
| • Compressor single pack | 195B0166 |
| Fan power output @ 50Hz [W] | 5 |
| Fan power output @ 60Hz [W] | 5 |
| • Fan bracket Description | Fan bracket |
| • Fan cowl/grill Description | Fan cowl |
| • Starting relay Description | RELAY ASSY. - DROP-OUT NOM. 3.15A |
| Fan power consumption @ 50Hz [W] | 27 |
| Fan power consumption @ 60Hz [W] | 24 |
| Compressor power supply [V/Ph/Hz] | 230/1/50 |
| Fan voltage @ 50Hz (max) [V] [Max] | 240 |
| Fan voltage @ 50Hz (max) [V] [Min] | 220 |
| Fan voltage @ 60Hz (max) [V] [Max] | 240 |
| Fan voltage @ 60Hz (max) [V] [Min] | 220 |
| • Starting capacitor Description | START CAPACITOR 60µF, 220V - PL,TL |
| • Compressor single pack Description | SERVICE-KIT TL 4DL- COMPRESSOR |
