114X1333

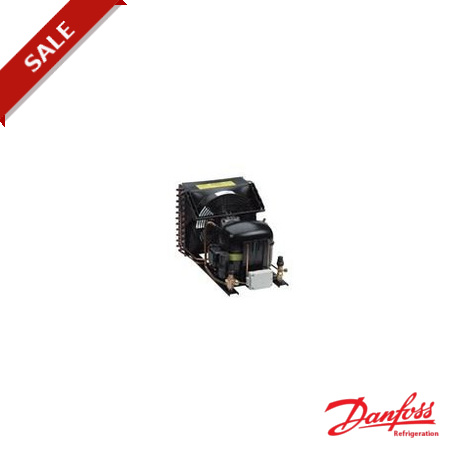

114X1333 DANFOSS REFRIGERATION OP-LCHC010SCA01G (SC10CLXT2) CONDENS. UN
$0.00USD
4825 in stock
Key Specifications
Region:Africa; Asia; Europe; Middle East; Pacific
DLLP_CU:5
K limit:71.67
Version:A01
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Region | Africa; Asia; Europe; Middle East; Pacific |
| DLLP_CU | 5 |
| K limit | 71.67 |
| Version | A01 |
| • Ebox | 118U0049 |
| Type Code | Optyma™ |
| Net weight | 21.88 Kg |
| Width [mm] | 321 |
| Length [mm] | 471 |
| Refrigerant | R404A; R507 |
| Applications | LBP |
| Gross weight | 21.88 Kg |
| Model number | OP-LCHC010SCA01G |
| • Receiver | 118U0523 |
| Segment usage | Low Back Pressure |
| • Condenser | 118U0030 |
| • Fan blade | 118U0038 |
| • Fan motor | 118U0033 |
| Condenser type | BG_3 |
| Number of fans | 1 |
| • Compressor | 104L2523 |
| Electrical code | G |
| • Fan bracket | 118U0063 |
| Compressor model | SC10CL |
| Type designation | Condensing Units |
| Voltage 50Hz [V] | 220 |
| • Fan assembly | 118U0073 |
| • Liquid valve | 118U0045 |
| Receiver approval | UL |
| Total height [mm] | 256 |
| • Suction valve | 118U0079 |
| • Fan cowl/grill | 118U0043 |
| • Starting relay | 117U6003 |
| Fan blade size [mm] | 230 |
| No. of phases (fan) | 1 |
| • Ebox Description | Ebox |
| Fan current @ 50Hz [A] | 0.25 |
| Fan current @ 60Hz [A] | 0.22 |
| Voltage 50Hz [V] [Max] | 240 |
| • Starting capacitor | 117U5017 |
| Air flow @ 50Hz [m³/h] | 620 |
| • Receiver Description | Receiver |
| • Condenser Description | BG_3 |
| • Fan blade Description | Fan blade |
| • Fan motor Description | Fan motor |
| Fan power supply [V/Ph/Hz] | 230/1/50 |
| No. of phases (compressor) | 1 |
| Sound power @ 50Hz [db(A)] | 62 |
| • Compressor Description | SC10CL |
| • Compressor single pack | 195B0074 |
| Fan power output @ 50Hz [W] | 10 |
| Fan power output @ 60Hz [W] | 9 |
| Liquid line connection [mm] | 6 |
| • Fan bracket Description | Fan bracket |
| Suction connection size [mm] | 8 |
| • Liquid valve Description | Valve Liq |
| • Suction valve Description | Valve Suction |
| • Fan cowl/grill Description | Fan cowl |
| • Starting relay Description | Starting Relay TL/SC |
| Fan power consumption @ 50Hz [W] | 36 |
| Fan power consumption @ 60Hz [W] | 34 |
| Compressor power supply [V/Ph/Hz] | 230/1/50 |
| Fan voltage @ 50Hz (max) [V] [Max] | 240 |
| Fan voltage @ 50Hz (max) [V] [Min] | 220 |
| Fan voltage @ 60Hz (max) [V] [Max] | 240 |
| Fan voltage @ 60Hz (max) [V] [Min] | 220 |
| • Starting capacitor Description | START CAPACITOR 80µF, 220V - SC |
| • Compressor single pack Description | Service kit SC10CL compressor |
