In Stock Hot Product
114X1304

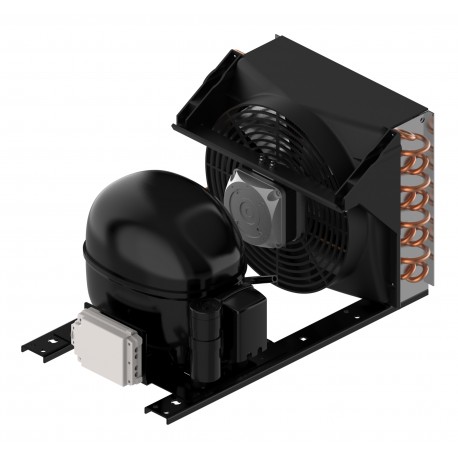

114X1304 DANFOSS REFRIGERATION OP-LCHC008NLA00G
$0.00USD
3095 in stock
Key Specifications
EAN ():5702428565639
Type ():Optyma™ A00
Phase ():1
Family ():Optyma™
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428565639 |
| Type () | Optyma™ A00 |
| Phase () | 1 |
| Family () | Optyma™ |
| Region () | AfricaAsiaEuropeMiddle EastPacific |
| Volume () | 58.065 Liter |
| Version () | A00 |
| Approval () | CEEAC |
| Net weight () | 15.5 Kg |
| Technology () | Reciprocating |
| Description () | OP-LCHC008NLA00G |
| Applications () | LBP |
| Gross weight () | 17.5 Kg |
| Model number () | OP-LCHC008 |
| Refrigerants () | R404AR452A |
| Product group () | Condensing Units |
| Segment usage () | Low Back Pressure |
| Condenser type () | BG_3 |
| Frequency [Hz] () | 50 Hz |
| Number of fans () | 1 |
| Speed Platform () | Fixed-speed |
| Electrical code () | G |
| Compressor model () | NL8.4CLX |
| Voltage 50Hz [V] () | 220 V |
| EU RoHS compliance () | No - out of scope |
| No. of phases (fan) () | 1 |
| Fan current @ 50Hz [A] () | 0.25 A |
| Fan current @ 60Hz [A] () | 0.22 A |
| Voltage 50Hz [V] [Max] () | 240 V |
| Product Name Description () | Bare unit |
| Fan power supply [V/Ph/Hz] () | 230/1/50 |
| No. of phases (compressor) () | 1 |
| Compressor power supply [V] () | 230/1/50 |
| REACH Candidate List substances () | No |
| Fan power consumption @ 50Hz [W] () | 36 W |
| Fan power consumption @ 60Hz [W] () | 34 W |
| In scope of WEEE and contain batteries () | No |
| Low value of voltage range at 60Hz [V] () | 220 V |
| High value of nominal voltage at 60Hz [V] () | 240 V |
Product Description
Optyma™, OP-LCHC008
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Segment usage: Low Back Pressure, Refrigerants: R404A; R452A, Compressor power supply [V]: 230/1/50
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
