114X0451

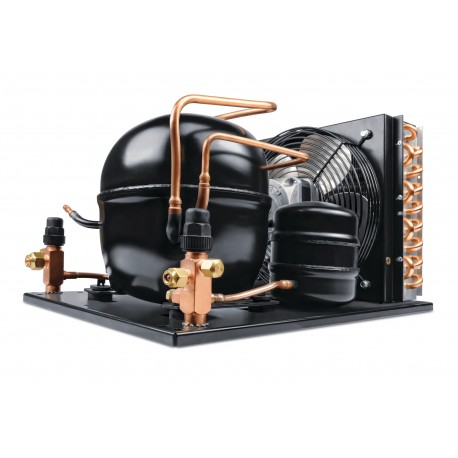

114X0451 DANFOSS REFRIGERATION OP-UCGC015SCA04G 220V R134a (SC15GXT2)
$0.00USD
4900 in stock
Key Specifications
EAN ():5702428565875
Type ():Optyma™
Region ():AfricaAsiaEuropeMiddle EastPacific
Version ():A04
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428565875 |
| Type () | Optyma™ |
| Region () | AfricaAsiaEuropeMiddle EastPacific |
| Version () | A04 |
| Net weight () | 24 kg |
| Technology () | Reciprocating |
| Description () | OP-MCGC015SCA04G |
| Refrigerant () | R134aR513A |
| Applications () | HBPMBP |
| Gross weight () | 24.8 kg |
| Model number () | OP-MCGC015SCA04G |
| Segment usage () | Medium Back Pressure |
| Condenser type () | BG_4/5 |
| Number of fans () | 1 |
| Electrical code () | G |
| Compressor model () | SC15GX |
| Type designation () | Condensing Units |
| Voltage 50Hz [V] () | 220 V |
| Approval standard () | CEEAC |
| Receiver approval () | UL |
| Fan blade size [mm] () | 254 mm |
| No. of phases (fan) () | 1 |
| Fan current @ 50Hz [A] () | 0.39 A |
| Fan current @ 60Hz [A] () | 0.35 A |
| Voltage 50Hz [V] [Max] () | 240 V |
| Air flow @ 50Hz [m³/h] () | 850 m³/h |
| Fan power supply [V/Ph/Hz] () | 230/1/50 |
| No. of phases (compressor) () | 1 |
| Sound power @ 50Hz [db(A)] () | 64 dBA |
| Fan power output @ 50Hz [W] () | 16 W |
| Fan power output @ 60Hz [W] () | 16 W |
| Liquid line connection [in] () | 1/4 in |
| Suction connection size [in] () | 3/8 in |
| Fan power consumption @ 50Hz [W] () | 55 W |
| Fan power consumption @ 60Hz [W] () | 53 W |
| Compressor power supply [V/Ph/Hz] () | 230/1/50 |
| Fan voltage @ 50Hz (max) [V] [Max] () | 240 V |
| Fan voltage @ 50Hz (max) [V] [Min] () | 220 V |
| Fan voltage @ 60Hz (max) [V] [Max] () | 240 V |
| Fan voltage @ 60Hz (max) [V] [Min] () | 220 V |
Product Description
Optyma™, OP-MCGC015SCA04G
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Segment usage: Medium Back Pressure, Refrigerant: R134a; R513A, Compressor power supply [V/Ph/Hz]: 230/1/50
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
