In Stock Hot Product
114X0232

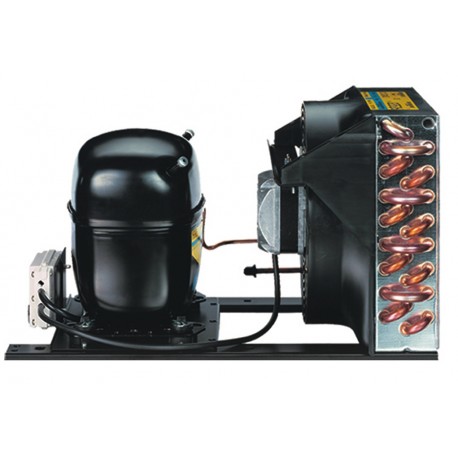

114X0232 DANFOSS REFRIGERATION OP-UCGC010FRA00G (FR10GXN0) CONDENS. UNI
$0.00USD
3578 in stock
Key Specifications
EAN ():5702428566117
Type ():Optyma™ A00
Phase ():1
Family ():Optyma™
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428566117 |
| Type () | Optyma™ A00 |
| Phase () | 1 |
| Family () | Optyma™ |
| Region () | AfricaAsiaEuropeMiddle EastPacific |
| Volume () | 51.844 Liter |
| Version () | A00 |
| Approval () | EAC |
| Net weight () | 16.5 Kg |
| Technology () | Reciprocating |
| Width [mm] () | 304 mm |
| Description () | OP-MCGC010FRA00G |
| Length [mm] () | 446 mm |
| Applications () | HBPLBPMBP |
| Gross weight () | 16.636 Kg |
| Model number () | OP-MCGC010 |
| Refrigerants () | R134a |
| Product group () | Condensing Units |
| Segment usage () | Low Back PressureMedium Back PressureUniversal |
| Condenser type () | BG_2 |
| Frequency [Hz] () | 50 Hz |
| Number of fans () | 1 |
| Speed Platform () | Fixed-speed |
| Electrical code () | G |
| Compressor model () | FR10GX |
| Replacement code () | 114X0204 |
| Voltage 50Hz [V] () | 220 V |
| Total height [mm] () | 226 mm |
| EU RoHS compliance () | No - out of scope |
| Fan blade size [mm] () | 200 mm |
| No. of phases (fan) () | 1 |
| Fan current @ 50Hz [A] () | 0.19 A |
| Fan current @ 60Hz [A] () | 0.17 A |
| Voltage 50Hz [V] [Max] () | 240 V |
| Air flow @ 50Hz [m³/h] () | 420 m³/h |
| Product Name Description () | Bare unit |
| Fan power supply [V/Ph/Hz] () | 230/1/50 |
| No. of phases (compressor) () | 1 |
| Sound power @ 50Hz [db(A)] () | 56 dBA |
| Compressor power supply [V] () | 230/1/50 |
| Fan power output @ 50Hz [W] () | 5 W |
| Fan power output @ 60Hz [W] () | 5 W |
| REACH Candidate List substances () | No |
| Fan power consumption @ 50Hz [W] () | 27 W |
| Fan power consumption @ 60Hz [W] () | 24 W |
| Fan voltage @ 50Hz (max) [V] [Max] () | 240 V |
| Fan voltage @ 50Hz (max) [V] [Min] () | 220 V |
| Fan voltage @ 60Hz (max) [V] [Max] () | 240 V |
| Fan voltage @ 60Hz (max) [V] [Min] () | 220 V |
| In scope of WEEE and contain batteries () | No |
| Low value of voltage range at 60Hz [V] () | 220 V |
| High value of nominal voltage at 60Hz [V] () | 240 V |
Product Description
Optyma™, OP-MCGC010
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Segment usage: Low Back Pressure; Universal; Medium Back Pressure, Refrigerants: R134a, Compressor power supply [V]: 230/1/50
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
