In Stock Hot Product
111B5140

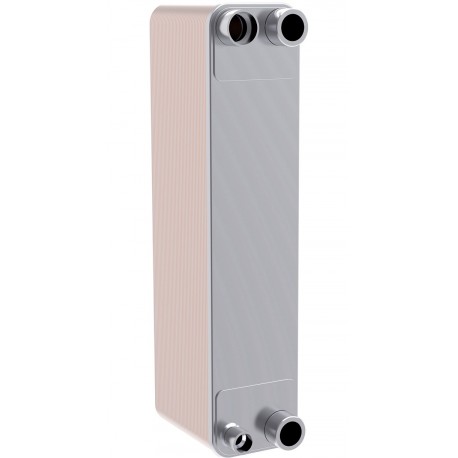

111B5140 DANFOSS REFRIGERATION Heat Exchanger C62L-EZ-B-94
$0.00USD
4399 in stock
Key Specifications
EAN ():5702424239008
Type ():MPHE C62L-EZ-B
Volume ():21.728 Liter
Approval ():ASEACKRAIAPEDUAULCRNRoHSUKCA
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702424239008 |
| Type () | MPHE C62L-EZ-B |
| Volume () | 21.728 Liter |
| Approval () | ASEACKRAIAPEDUAULCRNRoHSUKCA |
| Function () | Evaporator |
| Equipment () | Stud |
| Model No. () | 62 |
| Net weight () | 17.02 Kilogram |
| Application () | Chiller |
| Gross weight () | 18.288 Kilogram |
| PED category () | II |
| Refrigerants () | R1233zd(E)R1234yfR134aR22R245faR290R404AR407CR410AR444BR448AR449AR450AR452BR454BR454CR455AR507AR513AR515BR1234zeR454A |
| UL evaluated () | Yes |
| Function note () | With distributor |
| H1 conn. size () | Null |
| H1 conn. type () | Null |
| H2 conn. size () | Null |
| H2 conn. type () | Null |
| H3 conn. size () | Null |
| H3 conn. type () | Null |
| H4 conn. size () | Null |
| H4 conn. type () | Null |
| H5 conn. size () | Null |
| H5 conn. type () | Null |
| H6 conn. size () | Null |
| H6 conn. type () | Null |
| Plate pattern () | Z |
| Product group () | Heat exchangers |
| Q1 conn. type () | G External thread connection |
| Q2 conn. type () | G External thread connection |
| Q3 conn. type () | Solder connection |
| Q4 conn. type () | Solder connection |
| Q5 conn. type () | Null |
| Q6 conn. type () | Null |
| Packing format () | Single pack |
| Brazing material () | Copper brazing |
| In scope of WEEE () | No |
| Number of plates () | 94 |
| Type designation () | C62L-EZ-B |
| EU RoHS compliance () | Yes |
| Plate material no. () | AISI 316L |
| UK RoHS compliance () | Yes |
| Q1 conn. size range () | L1"1/4R |
| Q2 conn. size range () | L1"1/4R |
| Q3 conn. size range () | 7/8" |
| Q4 conn. size range () | 1"5/8 |
| Q5 conn. size range () | Null |
| Q6 conn. size range () | Null |
| China RoHS compliance () | Yes |
| EU RoHS exemption clause () | No |
| Product Name Description () | Micro Plate heat exchanger |
| UK RoHS exemption clause () | No |
| Max working pressure [psi] () | 653 psi |
| Max. Working Pressure [bar] () | 45 bar |
| Quantity per packing format () | 1 pc |
| REACH Candidate List substances () | No |
| Design temperature range [°C] [max] () | 200 °C |
| Design temperature range [°C] [min] () | -196 °C |
| Design temperature range [°F] [max] () | 320 °F |
| Design temperature range [°F] [min] () | -390 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
Micro Plate heat exchanger, MPHE C62L-EZ-B, Number of plates: 94
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Max. Working Pressure [bar]: 45.0, Chiller, Function: Evaporator, Brazing material: Copper brazing
