In Stock Hot Product
111B2095

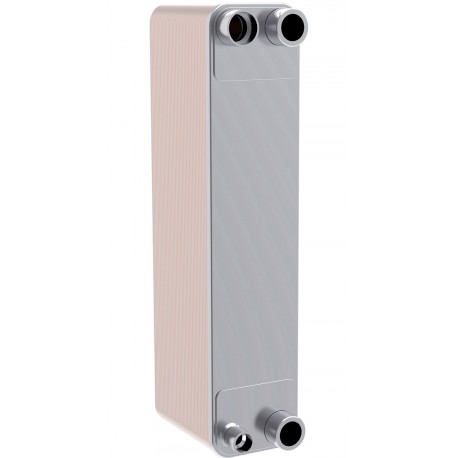

111B2095 DANFOSS REFRIGERATION Micro Plate heat exchanger H62L-CX-24(I-Pack)
$0.00USD
4565 in stock
Key Specifications
EAN ():5702428589963
Type ():MPHE H62L-CX
Volume ():9.215 Liter
Approval ():EACKRAIAPEDRoHSUAUKCA
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428589963 |
| Type () | MPHE H62L-CX |
| Volume () | 9.215 Liter |
| Approval () | EACKRAIAPEDRoHSUAUKCA |
| Function () | Condenser |
| Model No. () | 62 |
| Net weight () | 6.23 Kg |
| Application () | Heat pump |
| Gross weight () | 7.68 Kg |
| Refrigerants () | R11R113R114R12R123R1233zd(E)R1234yfR1234zeR124R134aR152aR22R227eaR245faR290R401AR402AR402BR404AR407AR407BR407CR407FR408AR409AR410AR412AR413AR417AR422DR444BR448AR449AR450AR452AR452BR454BR454CR455AR500R502R507AR513AR515BR600aR508B |
| H3 conn. size () | 1/2 in |
| H3 conn. type () | Solder connection |
| H4 conn. size () | 1/2 in |
| H4 conn. type () | Solder connection |
| Plate pattern () | X |
| Product group () | Heat exchangers |
| Q1 conn. type () | Solder connection |
| Q2 conn. type () | Solder connection |
| Packing format () | Industrial pack |
| Brazing material () | Copper brazing |
| Number of plates () | 24 |
| Type designation () | H62L-CX |
| EU RoHS compliance () | Yes |
| Plate material no. () | AISI 316L |
| Q1 conn. size range () | 1"1/4 in |
| Q2 conn. size range () | 1"1/4 in |
| Product Name Description () | Micro Plate heat exchanger |
| Max working pressure [psi] () | 696 psi |
| Max. Working Pressure [bar] () | 48 bar |
| Quantity per packing format () | 36 pc |
| REACH Candidate List substances () | No |
| Design temperature range [°C] [max] () | 200 °C |
| Design temperature range [°C] [min] () | -196 °C |
| Design temperature range [°F] [max] () | 320 °F |
| Design temperature range [°F] [min] () | -390 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
Micro Plate heat exchanger, MPHE H62L-CX
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Function: Condenser, Max working pressure [psi]: 696, Number of plates: 24, Brazing material: Copper brazing
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
