105F3720

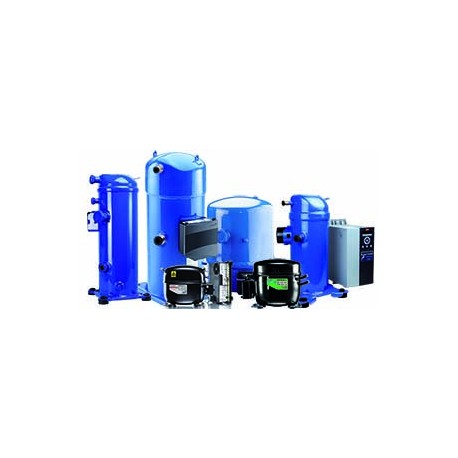

105F3720 DANFOSS REFRIGERATION Reciprocating compressor, NF7MLX
$0.00USD
4844 in stock
Key Specifications
Oil:POE
RLA:3.7 To
Color:Black
Phase:One
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Oil | POE |
| RLA | 3.7 To |
| Color | Black |
| Phase | One |
| Economizer | Not |
| Net weight | 10.5 Kg |
| Technology | Alternative |
| Description | NF7MLX |
| Engine type | CSIR |
| LRA HST [A] | 20 To |
| LRA LST [A] | 21 To |
| Applications | MBP |
| Gross weight | 11 Kg |
| Model number | NF7MLX |
| Refrigerants | R404AR507 |
| Amount of oil | 320 cm3 |
| Frequency [Hz] | 50/60 |
| Oil charge [L] | 320 L |
| Use of segment | Refrigeration MT |
| Capacity control | Fixed speed |
| Packaging format | Industrial package |
| Type designation | Compressor |
| Units of packing | Eighty |
| Configuration code | Individual |
| Swept volume [cm3] | 7.27 cm3 |
| Voltage, 50 Hz [V] | 220 V |
| Voltage, 60 Hz [V] | 208 V |
| Type of motherboard | EE. UU., small |
| N. º of phases (fan) | One |
| Technique of the brand | Reciprocating compressors, type |
| Capacity of capacitor B | 125 uF |
| Voltage 60 Hz [V] [max.] | 230 V |
| Volume of free gas [cm3] | 2310 cm3 |
| Voltage, 50 Hz [V] [max.] | 220 V |
| Current connection HST [A] | 20 To |
| Current connection LST [A] | 21 To |
| Start capacitor capacitance | 125 µF |
| Merged Approval standard and | CCCUL |
| N. º of phases (compressor) | One |
| Refrigerant charge [kg] [Max] | 0.4 kg |
| Rotation speed at 50 Hz [rpm] | 2900 rpm |
| Rotation speed at 60 Hz [rpm] | 3500 rpm |
| Energy level of the application | Compressor MBP standard |
| Low value of voltage range at 50hz [V] | 187 V |
| High value of voltage range at 50hz [V] | 254 V |
| Winding temperature, stable [°C] [Max] | 125 °C |
| High value of nominal voltage at 50 Hz [V] | 230 V |
| Low value of the rated voltage at 50 Hz [V] | 208 V |
| Low value of the voltage range at 60 Hz [V] | 187 V |
| High value of the voltage range at 60 Hz [V] | 254 V |
| Low value of the nominal voltage at 60 Hz [V] | 208 V |
| High value of the nominal voltage at 60 Hz [V] | 230 V |
| Temperature of the winding, the short-term [°C] [Max] | 135 °C |
| Resistance of the primary winding for compressors in single-phase [Ohm] | 4.5 Ohm |
| Auxiliary winding resistance (start winding) for single-phase compressors [Ohm] | 12.8 Ohm |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
