104L4090

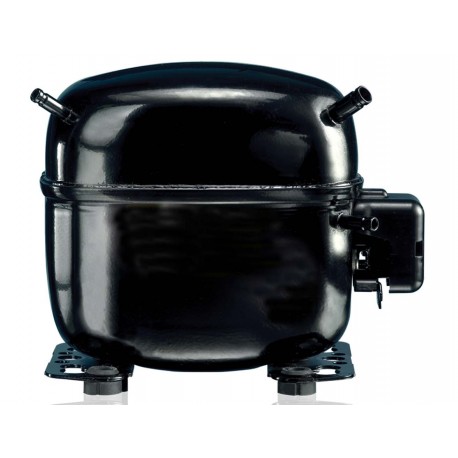

104L4090 DANFOSS REFRIGERATION Tandem reciprocating compressor, SC18/18CL
$0.00USD
3041 in stock
Key Specifications
RLA ():3.90 A
Type ():SC18/18
Phase ():1
Colour ():Black
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| RLA () | 3.90 A |
| Type () | SC18/18 |
| Phase () | 1 |
| Colour () | Black |
| Family () | SC |
| Volume () | 55.467 Liter |
| Oil type () | POE |
| Economizer () | No |
| Motor type () | CSR |
| Net weight () | 29.1 Kg |
| Technology () | Reciprocating |
| Width [mm] () | 326 mm |
| Description () | SC18/18CL |
| LRA HST [A] () | 40.8 A |
| Length [mm] () | 320 mm |
| Gross weight () | 30.056 Kg |
| Model number () | SC18/18CL |
| Product group () | Hermetic compressors |
| Frequency [Hz] () | 50 |
| Packing format () | Industrial pack |
| Brand technique () | Reciprocating compressor |
| Capacity control () | Fixed speed |
| LRA HST 60Hz [A] () | 20.4 A |
| Liquid injection () | No |
| Voltage 50Hz [V] () | 220 V |
| Total height [mm] () | 259 mm |
| Configuration code () | Tandem |
| Oil quantity [cm3] () | 1220 cm³ |
| Swept volume [cm3] () | 35.38 cm³ |
| No. of phases (fan) () | 1 |
| Free gas volume [cm3] () | 2920 cm³ |
| Cut in current HST [A] () | 20.4 A |
| Voltage 50Hz [V] [Max] () | 240 V |
| Product Name Description () | Reciprocating compressor SC |
| Run capacitor capacitance () | 10 µF |
| Height from baseplate [mm] () | 254 mm |
| No. of phases (compressor) () | 1 |
| Compressor power supply [V] () | 220-240/1/50 |
| Process connection comments () | Rubber plug |
| Process connection material () | Copper |
| Start capacitor capacitance () | 80 µF |
| Suction connection material () | Copper |
| Discharge connection comments () | Rubber plug |
| Discharge connection material () | Copper |
| Process connection angle [°] () | 37 ° |
| Refrigerant charge [kg] [Max] () | 2.2 kg |
| Suction connection angle [°] () | 37 ° |
| Process connection height [mm] () | 193 mm |
| Rotational speed at 50Hz [rpm] () | 2900 rpm |
| Suction connection height [mm] () | 193 mm |
| Discharge connection angle [°] () | 37 ° |
| Discharge connection height [mm] () | 110 mm |
| Process connection diameter [mm] () | 6.2 mm |
| Suction connection diameter [mm] () | 16 mm |
| Discharge connection diameter [mm] () | 6.2 mm |
| Winding temperature stat [°C] [Max] () | 125 °C |
| In scope of WEEE and contain batteries () | No |
| Low value of voltage range at 50Hz [V] () | 198 V |
| High value of voltage range at 50Hz [V] () | 264 V |
| Low value of nominal voltage at 50Hz [V] () | 220 V |
| High value of nominal voltage at 50Hz [V] () | 240 V |
| Winding temperature short term [°C] [Max] () | 135 °C |
| Main winding resistance for single-phase compressors [Ohm] () | 3.7 |
| Auxiliary winding resistance (start winding) for single-phase compressors [Ohm] () | 13.7 |
| Auxiliary winding resistance (start winding) for single-phase compressors alt [Ohm] () | 13.7 |
Product Description
Reciprocating compressor, SC18/18CL
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Refrigerants: R404A, Segment usage: Refrigeration LT, Compressor power supply [V]: 220-240/1/50
