103U2670

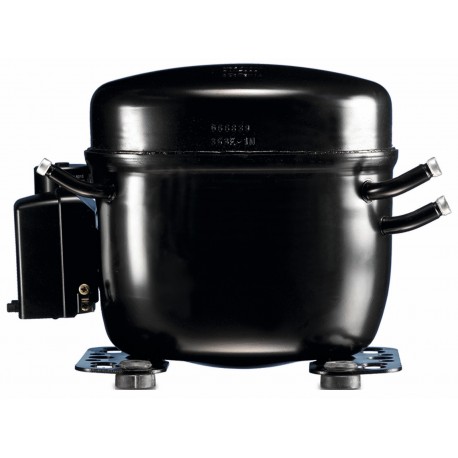

103U2670 DANFOSS REFRIGERATION Reciprocating compressor, FR6CL
$0.00USD
4661 in stock
Key Specifications
RLA ():1.60 A
Type ():FR6
Phase ():1
Colour ():Black
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| RLA () | 1.60 A |
| Type () | FR6 |
| Phase () | 1 |
| Colour () | Black |
| Family () | FR |
| Oil type () | POE |
| Economizer () | No |
| Motor type () | CSIR |
| Net weight () | 10.502 Kg |
| Technology () | Reciprocating |
| Width [mm] () | 156 mm |
| Description () | FR6CL |
| LRA HST [A] () | 9 A |
| LRA LST [A] () | 8.4 A |
| Length [mm] () | 243 mm |
| Gross weight () | 10.7 Kg |
| Model number () | FR6CL |
| Product group () | Hermetic compressors |
| Frequency [Hz] () | 50 |
| Packing format () | Industrial pack |
| Brand technique () | Reciprocating compressor |
| Capacity control () | Fixed speed |
| LRA HST 60Hz [A] () | 9 A |
| Liquid injection () | No |
| Voltage 50Hz [V] () | 220 V |
| Total height [mm] () | 196 mm |
| Configuration code () | Single |
| Oil quantity [cm3] () | 450 cm³ |
| Swept volume [cm3] () | 6.23 cm³ |
| No. of phases (fan) () | 1 |
| Free gas volume [cm3] () | 1350 cm³ |
| Cut in current HST [A] () | 9 A |
| Cut in current LST [A] () | 12.8 A |
| Voltage 50Hz [V] [Max] () | 240 V |
| Product Name Description () | Reciprocating compressor FR |
| Height from baseplate [mm] () | 191 mm |
| No. of phases (compressor) () | 1 |
| Compressor power supply [V] () | 220-240/1/50 |
| Process connection comments () | Al-cap |
| Process connection material () | Cu-plated steel |
| Suction connection material () | Cu-plated steel |
| Discharge connection comments () | Al-cap |
| Discharge connection material () | Cu-plated steel |
| Process connection angle [°] () | 30 ° |
| Refrigerant charge [kg] [Max] () | 0.85 kg |
| Suction connection angle [°] () | 30 ° |
| Rotational speed at 50Hz [rpm] () | 2900 rpm |
| Discharge connection angle [°] () | 25 ° |
| REACH Candidate List substances () | No |
| Process connection diameter [mm] () | 6.2 mm |
| Suction connection diameter [mm] () | 8.2 mm |
| Discharge connection diameter [mm] () | 6.2 mm |
| Winding temperature stat [°C] [Max] () | 125 °C |
| In scope of WEEE and contain batteries () | No |
| Low value of voltage range at 50Hz [V] () | 198 V |
| High value of voltage range at 50Hz [V] () | 264 V |
| Low value of nominal voltage at 50Hz [V] () | 220 V |
| High value of nominal voltage at 50Hz [V] () | 240 V |
| Winding temperature short term [°C] [Max] () | 135 °C |
| Main winding resistance for single-phase compressors [Ohm] () | 8.9 |
| Auxiliary winding resistance (start winding) for single-phase compressors [Ohm] () | 12 |
| Auxiliary winding resistance (start winding) for single-phase compressors alt [Ohm] () | 12 |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Refrigerants: R404A, Segment usage: Refrigeration LT, Compressor power supply [V]: 220-240/1/50
