103G6890

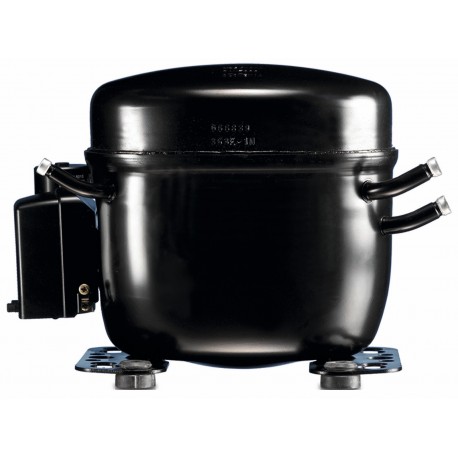

103G6890 DANFOSS REFRIGERATION Reciprocating compressor, FR10G
$0.00USD
4621 in stock
Key Specifications
RLA ():2.20 A
Type ():FR10
Phase ():1
Colour ():Black
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| RLA () | 2.20 A |
| Type () | FR10 |
| Phase () | 1 |
| Colour () | Black |
| Family () | FR |
| Oil type () | POE |
| Economizer () | No |
| Motor type () | CSIRRSIR |
| Net weight () | 10.6 Kg |
| Technology () | Reciprocating |
| Width [mm] () | 156 mm |
| Description () | FR10G |
| LRA HST [A] () | 10.9 A |
| LRA LST [A] () | 10.5 A |
| Length [mm] () | 243 mm |
| Gross weight () | 10.6 Kg |
| Model number () | FR10G |
| Product group () | Hermetic compressors |
| Frequency [Hz] () | 50/60 |
| Packing format () | Industrial pack |
| Brand technique () | Reciprocating compressor |
| Capacity control () | Fixed speed |
| LRA HST 60Hz [A] () | 10.9 A |
| Liquid injection () | No |
| Voltage 50Hz [V] () | 220 V |
| Voltage 60Hz [V] () | 220 V |
| Total height [mm] () | 196 mm |
| Configuration code () | Single |
| Oil quantity [cm3] () | 450 cm³ |
| Swept volume [cm3] () | 9.05 cm³ |
| No. of phases (fan) () | 1 |
| Free gas volume [cm3] () | 1350 cm³ |
| Cut in current HST [A] () | 10.9 A |
| Cut in current LST [A] () | 15.1 A |
| Voltage 50Hz [V] [Max] () | 240 V |
| Voltage 60Hz [V] [Max] () | 240 V |
| Product Name Description () | Reciprocating compressor FR |
| Height from baseplate [mm] () | 191 mm |
| No. of phases (compressor) () | 1 |
| Compressor power supply [V] () | 220/1/50 220/1/60 |
| Process connection comments () | Al-cap |
| Process connection material () | Cu-plated steel |
| Suction connection material () | Cu-plated steel |
| Discharge connection comments () | Al-cap |
| Discharge connection material () | Cu-plated steel |
| Process connection angle [°] () | 30 ° |
| Refrigerant charge [kg] [Max] () | 0.9 kg |
| Suction connection angle [°] () | 30 ° |
| Oil cooler connection comments () | Rubber cap |
| Oil cooler connection material () | Copper |
| Rotational speed at 50Hz [rpm] () | 2900 rpm |
| Rotational speed at 60Hz [rpm] () | 3500 rpm |
| Discharge connection angle [°] () | 25 ° |
| Process connection diameter [mm] () | 6.2 mm |
| Suction connection diameter [mm] () | 8.2 mm |
| Discharge connection diameter [mm] () | 6.2 mm |
| Oil cooler connection diameter [mm] () | 6.2 mm |
| Winding temperature stat [°C] [Max] () | 125 °C |
| In scope of WEEE and contain batteries () | No |
| Low value of voltage range at 50Hz [V] () | 198 V |
| Low value of voltage range at 60Hz [V] () | 198 V |
| High value of voltage range at 50Hz [V] () | 254 V |
| High value of voltage range at 60Hz [V] () | 254 V |
| Low value of nominal voltage at 50Hz [V] () | 220 V |
| Low value of nominal voltage at 60Hz [V] () | 220 V |
| High value of nominal voltage at 50Hz [V] () | 230 V |
| High value of nominal voltage at 60Hz [V] () | 230 V |
| Winding temperature short term [°C] [Max] () | 135 °C |
| Main winding resistance for single-phase compressors [Ohm] () | 7.1 |
| Auxiliary winding resistance (start winding) for single-phase compressors [Ohm] () | 11.9 |
| Auxiliary winding resistance (start winding) for single-phase compressors alt [Ohm] () | 11.9 |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Refrigerants: R134a, Compressor power supply [V]: 220/1/50 220/1/60
