101G0202

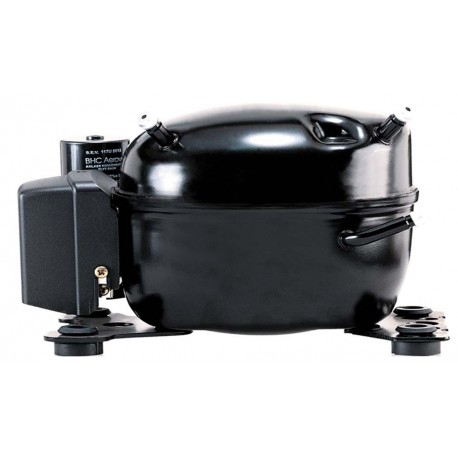

101G0202 DANFOSS REFRIGERATION Reciprocating compressor, PL35F
$0.00USD
4872 in stock
Key Specifications
RLA ():0.40 A
Type ():PL35
Phase ():1
Colour ():Black
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| RLA () | 0.40 A |
| Type () | PL35 |
| Phase () | 1 |
| Colour () | Black |
| Family () | PL |
| Volume () | 6.198 Liter |
| Oil type () | POE |
| Economizer () | No |
| Motor type () | RSIR |
| Net weight () | 4.666 Kg |
| Technology () | Reciprocating |
| Width [mm] () | 130 mm |
| Description () | PL35F |
| LRA LST [A] () | 1.7 A |
| Length [mm] () | 206 mm |
| Gross weight () | 4.666 Kg |
| Model number () | PL35F |
| Product group () | Hermetic compressors |
| Frequency [Hz] () | 50 |
| Packing format () | Industrial pack |
| Brand technique () | Reciprocating compressor |
| Capacity control () | Fixed speed |
| Liquid injection () | No |
| Voltage 50Hz [V] () | 220 V |
| Total height [mm] () | 129 mm |
| Configuration code () | Single |
| Oil quantity [cm3] () | 150 cm³ |
| Swept volume [cm3] () | 2 cm³ |
| No. of phases (fan) () | 1 |
| Free gas volume [cm3] () | 830 cm³ |
| Cut in current LST [A] () | 5.6 A |
| Voltage 50Hz [V] [Max] () | 240 V |
| Product Name Description () | Reciprocating compressor PL |
| Height from baseplate [mm] () | 127 mm |
| No. of phases (compressor) () | 1 |
| Compressor power supply [V] () | 220-240/1/50 |
| Process connection comments () | Al-cap |
| Process connection material () | Cu-plated steel |
| Suction connection material () | Cu-plated steel |
| Discharge connection comments () | Al-cap |
| Discharge connection material () | Cu-plated steel |
| Process connection angle [°] () | 45 ° |
| Refrigerant charge [kg] [Max] () | 0.3 kg |
| Suction connection angle [°] () | 40 ° |
| Process connection height [mm] () | 120 mm |
| Rotational speed at 50Hz [rpm] () | 2900 rpm |
| Suction connection height [mm] () | 120 mm |
| Discharge connection angle [°] () | 21 ° |
| REACH Candidate List substances () | No |
| Discharge connection height [mm] () | 73 mm |
| Process connection diameter [mm] () | 6.2 mm |
| Suction connection diameter [mm] () | 6.2 mm |
| Discharge connection diameter [mm] () | 5 mm |
| Winding temperature stat [°C] [Max] () | 125 °C |
| In scope of WEEE and contain batteries () | No |
| Low value of voltage range at 50Hz [V] () | 198 V |
| High value of voltage range at 50Hz [V] () | 264 V |
| Low value of nominal voltage at 50Hz [V] () | 220 V |
| High value of nominal voltage at 50Hz [V] () | 240 V |
| Winding temperature short term [°C] [Max] () | 135 °C |
| Main winding resistance for single-phase compressors [Ohm] () | 52 |
| Auxiliary winding resistance (start winding) for single-phase compressors [Ohm] () | 19 |
| Auxiliary winding resistance (start winding) for single-phase compressors alt [Ohm] () | 19 |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Refrigerants: R134a, Segment usage: Refrigeration MT, Compressor power supply [V]: 220-240/1/50
