In Stock Hot Product
099-1057

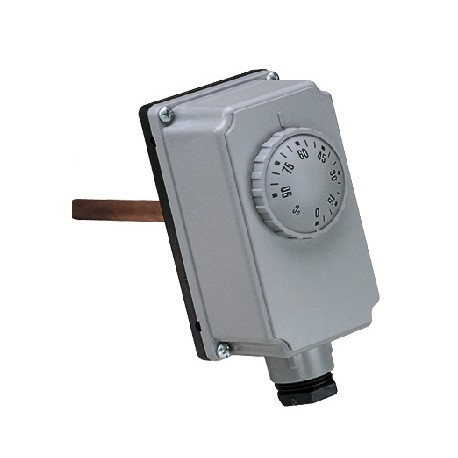

099-1057 DANFOSS HEATING ITC immersion thermostat
$0.00USD
3751 in stock
Key Specifications
EAN ():5013567403462
Type ():ITC
Volume ():1.213 Liter
Function ():Control thermostat (tamperproof)
Supplier Information
DANFOSS HEATING
Products: 5013
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5013567403462 |
| Type () | ITC |
| Volume () | 1.213 Liter |
| Function () | Control thermostat (tamperproof) |
| Depth [mm] () | 56 mm |
| Net weight () | 0.284 Kilogram |
| Width [mm] () | 54 mm |
| Description () | Control Function (Thermal Re-set) |
| Height [mm] () | 110 mm |
| EEE category () | 5 small equipment (any external dimension50 cm) |
| Gross weight () | 0.284 Kilogram |
| Label product () | Yes |
| Product group () | Immersion Thermostats |
| In scope of WEEE () | Yes |
| Pocket length [mm] () | 100 mm |
| UK RoHS compliance () | Yes |
| China RoHS compliance () | Out of scope |
| Switch type - control () | SPDT |
| Switching differential () | 4 ± 1°C |
| Ambient temperature [°C] [max] () | 65 °C |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Output relay rating inductive [A] () | 3 A |
| Output relay rating resistive [A] () | 10 A |
| Temperature Control range [°C] [Max] () | 90 °C |
| Temperature Control range [°C] [Min] () | 0 °C |
Product Description
Immersion Thermostats, ITC, Function: Control thermostat (tamperproof), 0 °C - 90 °C
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Control Function (Thermal Re-set)
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
