088U1142

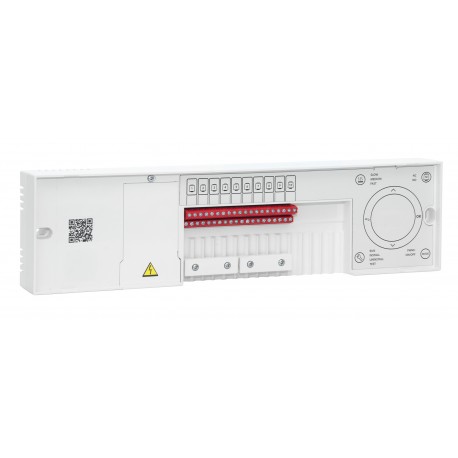

088U1142 DANFOSS HEATING Danfoss Icon Master Controller 24V 15 ch
$0.00USD
3600 in stock
Key Specifications
EAN ():5702424048860
PWM ():Yes
Type ():Danfoss Icon
NC/NO ():Yes
Supplier Information
DANFOSS HEATING
Products: 5013
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702424048860 |
| PWM () | Yes |
| Type () | Danfoss Icon |
| NC/NO () | Yes |
| Usage () | Upgradeable |
| Volume () | 4.221 Liter |
| Dual mode () | Yes |
| Away input () | Yes |
| Interfaces () | Wireless/Wired 24V |
| Net weight () | 1.384 Kilogram |
| Pump relay () | Yes |
| Description () | OTA, for 24V actuators, 15 channels, upgradeable to wireless |
| UNSPSC CODE () | 40101830 |
| Boiler relay () | Yes |
| EEE category () | 5 small equipment (any external dimension50 cm) |
| Gross weight () | 1.476 Kilogram |
| Installation () | On-wall |
| Suitable for () | 24V actuators |
| Cooling input () | Yes |
| Product group () | Floor Heating Controls |
| Valve excercise () | Yes |
| Capacitive touch () | Yes |
| In scope of WEEE () | Yes |
| Adaptive learning () | Yes |
| EU RoHS compliance () | Yes |
| Number of channels () | 15 |
| Supply voltage [V] () | 230 V |
| App control enabled () | Yes |
| Automatic balancing () | Yes |
| IP protection class () | IP20 |
| Temperature control () | Yes |
| Actuator on radiator () | Yes |
| Heating control type () | Master Controller |
| China RoHS compliance () | Out of scope |
| Output voltage [V] AC () | 24 V |
| Output voltage [V] DC () | 24 V |
| Number of outputs [pc] () | 15 pc |
| Upgradable to wireless () | Yes |
| Fits into switch frames () | No |
| Masters connected [Max] () | 3 |
| Number of actuators max () | 15 |
| EU RoHS exemption clause () | No |
| Power per output [W] [Max] () | 3 W |
| REACH Candidate List substances () | No |
Product Description
Floor Heating Controls, Danfoss Icon, Master Controller, 230.0 V, Output voltage [V] AC: 24, Number of channels: 15, On-wall
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
OTA, for 24V actuators, 15 channels, upgradeable to wireless, Wireless/Wired 24V
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
