In Stock Hot Product
088U1050

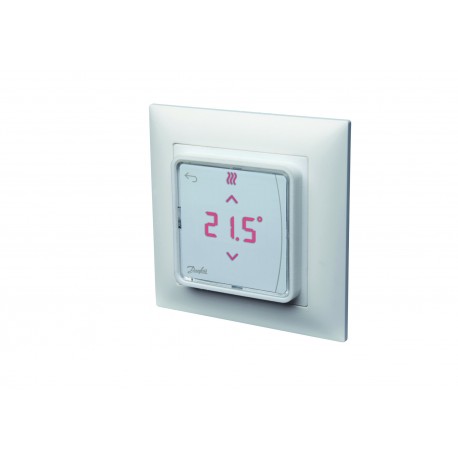

088U1050 DANFOSS HEATING Danfoss Icon RT24V Display In-wall 80x80
$0.00USD
3528 in stock
Key Specifications
EAN ():5702425147777
PWM ():Yes
Type ():Danfoss Icon
NC/NO ():Yes
Supplier Information
DANFOSS HEATING
Products: 5013
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702425147777 |
| PWM () | Yes |
| Type () | Danfoss Icon |
| NC/NO () | Yes |
| Usage () | Display |
| Volume () | 0.825 Liter |
| In-wall () | Yes |
| Dual mode () | Yes |
| Away input () | Yes |
| Interfaces () | Wired 24V |
| Net weight () | 0.152 Kilogram |
| Scheduling () | Yes |
| Description () | Danfoss Icon RT 24V, Display In-wall 80x80 |
| EEE category () | 5 small equipment (any external dimension50 cm) |
| Gross weight () | 0.152 Kilogram |
| Installation () | In-wall |
| Suitable for () | Wired floor sensor |
| Cooling input () | Yes |
| Product group () | Floor Heating Controls |
| Valve excercise () | Yes |
| Capacitive touch () | Yes |
| In scope of WEEE () | Yes |
| Thermal feedback () | No |
| Adaptive learning () | Yes |
| EU RoHS compliance () | Yes |
| Number of channels () | 0 |
| Supply voltage [V] () | 24 V |
| App control enabled () | Yes |
| IP protection class () | IP21 |
| Noiseless switching () | Yes |
| Product length [mm] () | 80 mm |
| Temperature control () | Yes |
| Actuator on radiator () | Yes |
| Floor sensor enabled () | Yes |
| Heating control type () | Room Thermostat |
| China RoHS compliance () | Out of scope |
| Output voltage [V] AC () | 24 V |
| Temperature limitation () | Yes |
| Fits into switch frames () | Yes |
| EU RoHS exemption clause () | No |
| Product height/depth [mm] () | 80 mm |
| Temperature set-back button () | Yes |
| REACH Candidate List substances () | No |
| Temperature setting range [°C] [Max] () | 35 °C |
| Temperature setting range [°C] [Min] () | 5 °C |
Product Description
Floor Heating Controls, Danfoss Icon, Room Thermostat, 24.0 V, Output voltage [V] AC: 24, Number of channels: 0, In-wall
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Danfoss Icon RT 24V, Display In-wall 80x80, Wired 24V
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
