In Stock Hot Product
088U0528

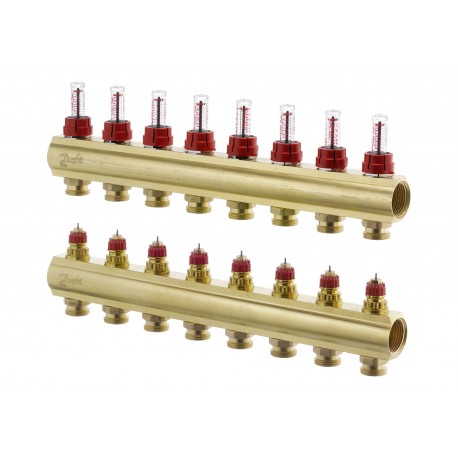

088U0528 DANFOSS HEATING Manifold 8+8 Danfoss BIV Flowmeter
$0.00USD
4645 in stock
Key Specifications
EAN ():5702420080987
Type ():Manifold FHF-F
Volume ():5.231 Liter
Material ():BRASS
Supplier Information
DANFOSS HEATING
Products: 5013
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702420080987 |
| Type () | Manifold FHF-F |
| Volume () | 5.231 Liter |
| Material () | BRASS |
| Flowmeter () | Yes |
| Net weight () | 5.086 Kilogram |
| Presetting () | yes |
| Bleed valve () | Not included |
| Description () | Manifold 8+8 Danfoss BIV Flowmeter |
| Gross weight () | 5.086 Kilogram |
| Product group () | Manifold & Manifold Kits |
| SCIP dossier no. () | 958f1048-f7ca-4f71-87ec-e4d587bc8f85 |
| Valve connection () | Danfoss RA |
| EU RoHS compliance () | Yes with exemptions |
| UK RoHS compliance () | Out of scope |
| Test pressure [bar] () | 10 bar |
| China RoHS compliance () | Out of scope |
| EU RoHS exemption clause () | 6(c) |
| SCIP dossier product name () | Manifold x+x Danfoss BIV Flowmeter |
| Flow temperature [°C] [Max] () | 60 °C |
| Working pressure [bar] [Max] () | 6 bar |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Differential pressure [bar] [max] () | 0.6 bar |
| Operating temperature [°C] [max] () | 60 °C |
| Number of heating manifold connections [loops] [Max] () | 8 |
Product Description
Manifold FHF-F, Brass, Number of heating manifold connections [loops] [Max]: 8, 6 bar
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Manifold 8+8 Danfoss BIV Flowmeter
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
