088U0508

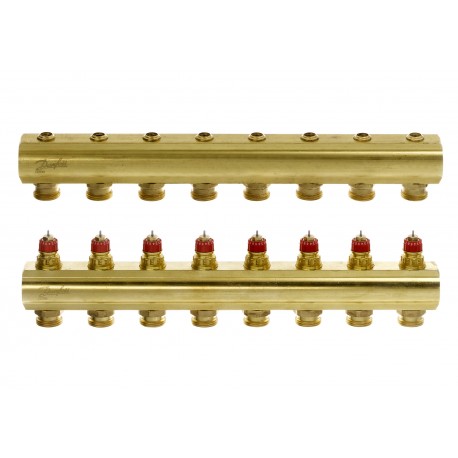

088U0508 DANFOSS HEATING Manifold 8+8 Danfoss BIV
$0.00USD
3630 in stock
Key Specifications
EAN ():5702420080871
Type ():Manifold FHF
Volume ():4.442 Liter
Material ():BRASS
Supplier Information
DANFOSS HEATING
Products: 5013
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702420080871 |
| Type () | Manifold FHF |
| Volume () | 4.442 Liter |
| Material () | BRASS |
| Flowmeter () | No |
| Net weight () | 4.728 Kilogram |
| Presetting () | yes |
| Bleed valve () | Not included |
| Description () | Manifold 8+8 Danfoss BIV |
| Gross weight () | 4.728 Kilogram |
| Product group () | Manifold & Manifold Kits |
| SCIP dossier no. () | 0f2f0bac-966c-4b04-9308-d05f77ce531d |
| Valve connection () | Danfoss RA |
| EU RoHS compliance () | Yes with exemptions |
| UK RoHS compliance () | Out of scope |
| Test pressure [bar] () | 16 bar |
| China RoHS compliance () | Out of scope |
| EU RoHS exemption clause () | 6(c) |
| SCIP dossier product name () | Manifold x+x Danfoss BIV |
| Flow temperature [°C] [Max] () | 90 °C |
| Working pressure [bar] [Max] () | 10 bar |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Differential pressure [bar] [max] () | 0.6 bar |
| Operating temperature [°C] [max] () | 90 °C |
| Number of heating manifold connections [loops] [Max] () | 8 |
Product Description
Manifold FHF, Brass, Number of heating manifold connections [loops] [Max]: 8, 10 bar
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Manifold 8+8 Danfoss BIV
