088L2171

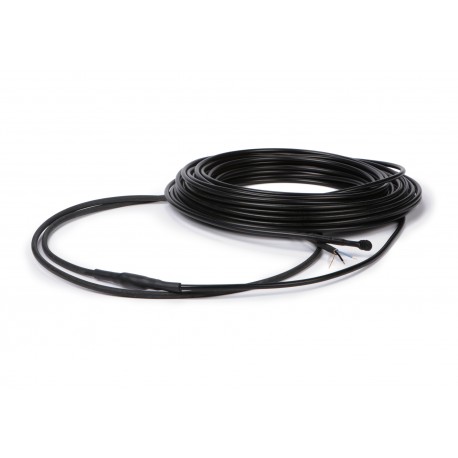

088L2171 DANFOSS HEATING ECsafe 20T 12m 230V 250W
$0.00USD
3642 in stock
Key Specifications
EAN ():5703466227329
Type ():ECsafe 20T
Volume ():8.046 Liter
Approval ():CE
Supplier Information
DANFOSS HEATING
Products: 5013
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5703466227329 |
| Type () | ECsafe 20T |
| Volume () | 8.046 Liter |
| Approval () | CE |
| Cold lead () | Yes |
| Lead free () | Yes |
| Cable type () | Twin conductor |
| Net weight () | 1.114 Kilogram |
| Application () | Sport fieldsCold storeGround ice and snow meltingVineyard frost protectionRoof frost protection |
| Description () | ECsafe 20T 250W 230V 12m |
| UNSPSC CODE () | 26121601 |
| CE evaluated () | Yes |
| Cable screen () | Alufoil 100% |
| Gross weight () | 1.125 Kilogram |
| Outer sheath () | PVC |
| UV Protected () | Yes |
| Cable on drum () | No |
| Cut to length () | No |
| EPD available () | Yes |
| Product group () | Heating Cables |
| Warranty type () | 20-year full service warranty |
| Cold lead type () | DTCL |
| Flame retardant () | Yes |
| Product version () | Ready-made |
| Warranty [Year] () | 20 |
| Cable length [m] () | 12 m |
| Element IP Class () | IPX7 |
| Heating principle () | Serial resistive |
| Cable output [W/m] () | 20 W/m |
| Cold lead quantity () | 1 |
| EU RoHS compliance () | Yes |
| Heating output [W] () | 250 W |
| Package depth [mm] () | 386 mm |
| Package width [mm] () | 386 mm |
| UK RoHS compliance () | Yes |
| Cable diameter [mm] () | 6.9 mm |
| Outer sheath colour () | Black |
| Package height [mm] () | 54 mm |
| Cold lead length [m] () | 2.3 m |
| Conductor insulation () | XLPE |
| Pulling strength [N] () | 500 N |
| Certification company () | Intertek Semko |
| China RoHS compliance () | Out of scope |
| Cold lead size [mm²] () | 1.5 mm² |
| Supply voltage [V] AC () | 230 V |
| Cable resistance [Ohm] () | 211 |
| Deformation strength [N] () | 1500 N |
| Bending diameter [mm] [Min] () | 42 mm |
| Cold lead conductor quantity () | 3 |
| REACH Candidate List substances () | No |
| Operating temperature [°C] [max] () | 60 °C |
| Installation temperature [°C] [Min] () | -5 °C |
| Non operating temperature [°C] [Max] () | 90 °C |
| In scope of WEEE and contain batteries () | No |
Product Description
Heating Cables, ECsafe 20T, 20 W/m, 12.00 m, Supply voltage [V] AC: 230
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Cable type: Twin conductor, Product version: Ready-made, Heating principle: Serial resistive, Application: Roof frost protection; Vineyard frost protection; Cold store; Ground ice and snow melting; Sport fields
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
