In Stock Hot Product
088L0991

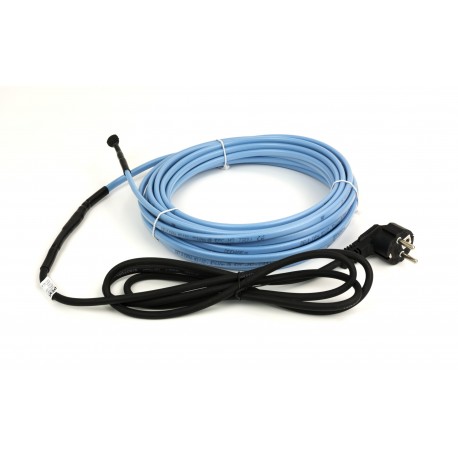

088L0991 DANFOSS HEATING ECpipeheat 10 V2 plug 6m 230V
$0.00USD
3823 in stock
Key Specifications
EAN ():5703466217832
Type ():ECpipeheat 10 V2 readym.
Volume ():9.147 Liter
Approval ():UkrTESTCE
Supplier Information
DANFOSS HEATING
Products: 5013
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5703466217832 |
| Type () | ECpipeheat 10 V2 readym. |
| Volume () | 9.147 Liter |
| Approval () | UkrTESTCE |
| Cold lead () | Yes |
| Cable type () | Twin conductor |
| Net weight () | 746 Gram |
| Application () | Pipe / tank frost protection |
| Description () | ECpipeheat 10 w/plug V2 6m 60W@10°C 230V |
| UNSPSC CODE () | 40101830 |
| CE evaluated () | Yes |
| Cable screen () | Alufoil 100% |
| EEE category () | 5 small equipment (any external dimension50 cm) |
| Gross weight () | 950 Gram |
| Outer sheath () | TPE |
| Cable on drum () | No |
| Cut to length () | No |
| Product group () | Heating Cables |
| Warranty type () | 5-year product warranty |
| Conductor type () | Tinned copper |
| Filler material () | TPE |
| Product version () | Ready-made |
| Warranty [Year] () | 5 |
| Cable length [m] () | 6 m |
| Cable width [mm] () | 7.7 mm |
| Element IP Class () | IPX7 |
| In scope of WEEE () | Yes |
| Cable height [mm] () | 5.3 mm |
| Heating principle () | Self-limiting |
| Cold lead quantity () | 1 |
| EU RoHS compliance () | Yes |
| Package depth [mm] () | 300 mm |
| Package width [mm] () | 420 mm |
| UK RoHS compliance () | Yes |
| Outer sheath colour () | Light blue |
| Package height [mm] () | 40 mm |
| Cable output [W@°C] () | 60W@10°C |
| Cold lead length [m] () | 2 m |
| Conductor insulation () | Cross linked polyolefin |
| Certification company () | CEEACUkrTEST |
| China RoHS compliance () | Out of scope |
| Supply voltage [V] AC () | 230 V |
| Cable output [W/m@°C] () | 10W/m@10°C |
| EU RoHS exemption clause () | No |
| Bending diameter [mm] [Min] () | 50 mm |
| Cold lead conductor quantity () | 3 |
| REACH Candidate List substances () | No |
| Operating temperature [°C] [max] () | 65 °C |
| Installation temperature [°C] [Min] () | -5 °C |
| Non operating temperature [°C] [Max] () | 65 °C |
| In scope of WEEE and contain batteries () | No |
Product Description
Heating Cables, ECpipeheat 10 V2 readym., 10W/m@10°C, 6.00 m, Supply voltage [V] AC: 230
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Cable type: Twin conductor, Product version: Ready-made, Heating principle: Self-limiting, Application: Pipe / tank frost protection
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
