088L0035

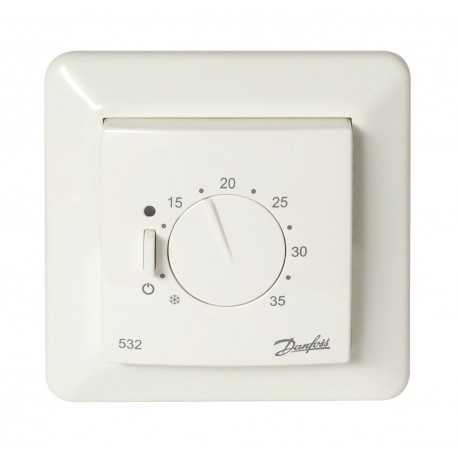

088L0035 DANFOSS HEATING EFET 532, WE ELKO
$0.00USD
4955 in stock
Key Specifications
EAN ():5703466129005
Type ():ECtemp 53x series
Colour ():White RAL 9010
Volume ():0.761 Liter
Supplier Information
DANFOSS HEATING
Products: 5013
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5703466129005 |
| Type () | ECtemp 53x series |
| Colour () | White RAL 9010 |
| Volume () | 0.761 Liter |
| Approval () | CE |
| Depth [mm] () | 36 mm |
| Net weight () | 0.21 Kilogram |
| Width [mm] () | 85 mm |
| Application () | Floor heating |
| Description () | ECtemp 532 |
| Height [mm] () | 85 mm |
| Sensor type () | Room + Floor |
| UNSPSC CODE () | 41112209 |
| CE evaluated () | Yes |
| DIN mounting () | No |
| Display type () | No display |
| EEE category () | 5 small equipment (any external dimension50 cm) |
| Gross weight () | 0.24 Kilogram |
| Relay switch () | 2-pole |
| 2-pole switch () | No |
| Product group () | Thermostats |
| Scale Setting () | 5 - 35ºC |
| Warranty type () | 2-year product warranty |
| Indicator type () | LED |
| Inductive load () | cos φ= 0.3 max 1A |
| Regulation type () | Hysteresis |
| Warranty [Year] () | 2 |
| Display (Yes/No) () | No |
| Element IP Class () | 31 |
| Hysteresis (+/-) () | 0.4 |
| In scope of WEEE () | Yes |
| Pollution degree () | 2 |
| Package depth [mm] () | 140 mm |
| Package width [mm] () | 95 mm |
| Package height [mm] () | 85 mm |
| Product description () | ECtemp 532 |
| Certification company () | NEMKO |
| Supply voltage [V] AC () | 230 V |
| Frost protection [°C] () | 5 °C |
| Resistive load max [A] () | 15 A |
| Supply voltage [V] AC [max] () | 240 V |
| Supply voltage [V] AC [min] () | 220 V |
| Temperature - room [°C] [Max] () | 35 °C |
| Temperature - room [°C] [Min] () | 5 °C |
| Terminal cable size max [mm²] () | 2 x 2.5 |
| Ambient temperature [°C] [max] () | 30 °C |
| Ambient temperature [°C] [min] () | -10 °C |
| REACH Candidate List substances () | No |
| Storage temperature [°C] [Max] () | 65 °C |
| Storage temperature [°C] [Min] () | -20 °C |
| Temperature - floor [°C] [Max] () | 50 °C |
| Temperature - floor [°C] [Min] () | 20 °C |
| Sensor definition point [Ohm/°C] () | 15kΩ / 25°C |
| Standby power consumption [W] [Max] () | 0.25 W |
| Ball pressure test temperature [°C] () | 75 °C |
| In scope of WEEE and contain batteries () | No |
Product Description
Thermostats, ECtemp 532, Sensor type: Room + Floor, 15 A
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Temperature - room [°C]: 5 - 35, Display type: No display, Application: Floor heating
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
