088H3105

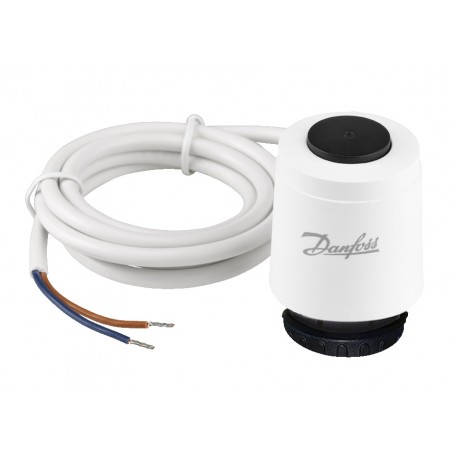

088H3105 DANFOSS HEATING TWA-K 230V NC/S (M30x1.5)
$0.00USD
3771 in stock
Key Specifications
EAN ():5702425123429
Type ():TWA-K
Volume ():0.41 Liter
End-switch ():Yes
Supplier Information
DANFOSS HEATING
Products: 5013
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702425123429 |
| Type () | TWA-K |
| Volume () | 0.41 Liter |
| End-switch () | Yes |
| Net weight () | 0.136 Kilogram |
| Description () | TWA-K NC/S 230V |
| UNSPSC CODE () | 40101801 |
| Gross weight () | 0.136 Kilogram |
| Product group () | Thermal actuators |
| Valve function () | NC/S (with end-switch) |
| Connection size () | M 30 x 1.5 |
| Connection type () | M 30 x 1.5 |
| Cable length [m] () | 0.95 m |
| SCIP dossier no. () | a2abfd55-651d-4ef6-83ba-4b7de07ba1bd |
| EU RoHS compliance () | Yes with exemptions |
| IP protection class () | IP41 |
| China RoHS compliance () | Out of scope |
| Power consumption [W] () | 2 W |
| Supply voltage [V] AC () | 230 V |
| SCIP dossier product name () | "Thermal wax actuator (TWA)" |
| Frequency range [Hz] [Max] () | 60 Hz |
| Frequency range [Hz] [Min] () | 50 Hz |
| Quantity per packing format () | 48 pc |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
Product Description
Thermal actuators, TWA-K, M 30 x 1.5, Supply voltage [V] AC: 230, NC/S (with end-switch), 0.950 m
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
TWA-K NC/S 230V
