In Stock Hot Product
088H0022

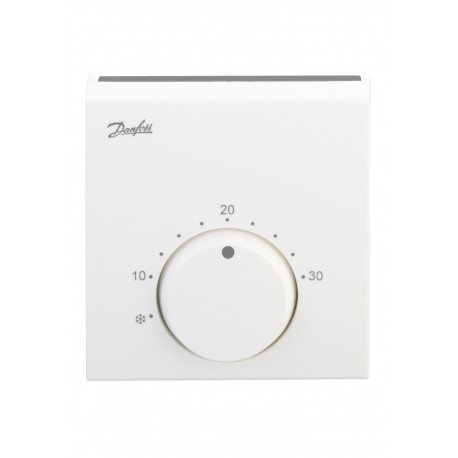

088H0022 DANFOSS HEATING FH-WT Room Thermostat, Standard
$0.00USD
4730 in stock
Key Specifications
EAN ():5702420052960
PWM ():No
Type ():FH Room Thermostats
NC/NO ():NC
Supplier Information
DANFOSS HEATING
Products: 5013
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702420052960 |
| PWM () | No |
| Type () | FH Room Thermostats |
| NC/NO () | NC |
| Usage () | Dial |
| Volume () | 0.268 Liter |
| In-wall () | No |
| On-wall () | Yes |
| Dual mode () | No |
| Away input () | No |
| Interfaces () | Wired 24V |
| Net weight () | 0.087 Kilogram |
| Scheduling () | No |
| Description () | FH-WT Room Thermostat, Standard |
| EEE category () | 5 small equipment (any external dimension50 cm) |
| Gross weight () | 0.094 Kilogram |
| Installation () | On-wall |
| Suitable for () | 24V actuators |
| Tamper proof () | No |
| Cooling input () | No |
| Product group () | Floor Heating Controls |
| Stem position () | Standard |
| Valve excercise () | No |
| Capacitive touch () | No |
| In scope of WEEE () | Yes |
| Thermal feedback () | No |
| Adaptive learning () | No |
| EU RoHS compliance () | Yes |
| Supply voltage [V] () | 24 V |
| IP protection class () | IP20 |
| Noiseless switching () | Yes |
| Temperature control () | Yes |
| Actuator on radiator () | No |
| Floor sensor enabled () | No |
| Heating control type () | Room Thermostat |
| Output voltage [V] AC () | 24 V |
| Temperature limitation () | No |
| Fits into switch frames () | No |
| Number of actuators max () | 2 |
| EU RoHS exemption clause () | No |
| Frequency range [Hz] [Max] () | 60 Hz |
| Frequency range [Hz] [Min] () | 50 Hz |
| Temperature set-back button () | No |
| REACH Candidate List substances () | No |
| Temperature setting range [°C] [Max] () | 30 °C |
| Temperature setting range [°C] [Min] () | 6 °C |
Product Description
Floor Heating Controls, FH Room Thermostats, Room Thermostat, 24 V, Standard, On-wall
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
FH-WT Room Thermostat, Standard, Wired 24V
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
