In Stock Hot Product
087U4042

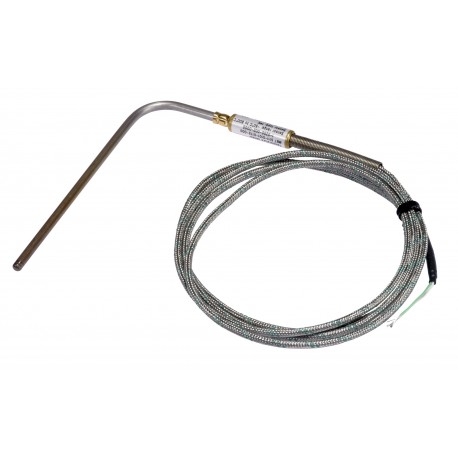

087U4042 DANFOSS CONTROLES INDUSTRIALES Temperature sensor, MBT 5111
$0.00USD
4112 in stock
Key Specifications
EAN ():5702423232963
Type ():MBT 5111
Volume ():0.8 Liter
Cable type ():PFA TC, screened
Supplier Information
DANFOSS INDUSTRIAL AUTOMATION
Products: 1269
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702423232963 |
| Type () | MBT 5111 |
| Volume () | 0.8 Liter |
| Cable type () | PFA TC, screened |
| Net weight () | 0.246 Kg |
| Gross weight () | 0.247 Kg |
| Thermocouple () | 1 x NiCr-Ni, Type K |
| Output signal () | mV |
| Product group () | Sensors |
| Sensor Insert () | Fixed |
| Packing format () | Multi pack |
| Cable length [m] () | 4 m |
| SCIP dossier no. () | 6992421c-ca63-4034-a839-d31715530d6d |
| Type designation () | 00 MBT 5111-0101-0175-000-101 -0400-002-0000 |
| Cable length [in] () | 157.48 in |
| EU RoHS compliance () | Yes with exemptions |
| Enclosure rating IP () | IP65 |
| Extension length [in] () | 8.46 in |
| Extension length [mm] () | 215 mm |
| Insertion length [in] () | 6.89 in |
| Insertion length [mm] () | 175 mm |
| Thermocouple tolerance () | EN 60584-2 Class 2 |
| Process connection size () | NONE |
| Process connection type () | NONE |
| Sensor element standard () | EN 60584-2 |
| Product Name Description () | Temperature sensor |
| Protection tube material () | AISI 316 Ti |
| Sensor element tolerance () | Class 2 |
| Thermocouple design std. () | EN 61515 |
| Electrical connection size () | 2 wire |
| Process connection standard () | NONE |
| Quantity per packing format () | 10 pc |
| Protection tube diameter [in] () | 0.24 in |
| Protection tube diameter [mm] () | 6 mm |
| Temperature range [°C] [max] () | 800 °C |
| Temperature range [°C] [min] () | -50 °C |
| Temperature range [°F] [max] () | 1472 °F |
| Temperature range [°F] [min] () | -58 °F |
| Ambient temperature max. [°C] () | 200 °C |
| Ambient temperature max. [°F] () | 392 °F |
| Cable tempr. range [°C] [max] () | 260 °C |
| Cable tempr. range [°C] [min] () | -60 °C |
| Cable tempr. range [°F] [max] () | 500 °F |
| Cable tempr. range [°F] [min] () | -76 °F |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| In scope of WEEE and contain batteries () | No |
Product Description
Temperature sensor, MBT 5111, 175 mm, NONE,NONE, NONE
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Temperature range [°C]: -50 - 800, Thermocouple: 1 x NiCr-Ni, Type K, Output signal: mV, Protection tube material: AISI 316 Ti, Electrical connection size: 2 wire
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
