In Stock Hot Product
087N7936

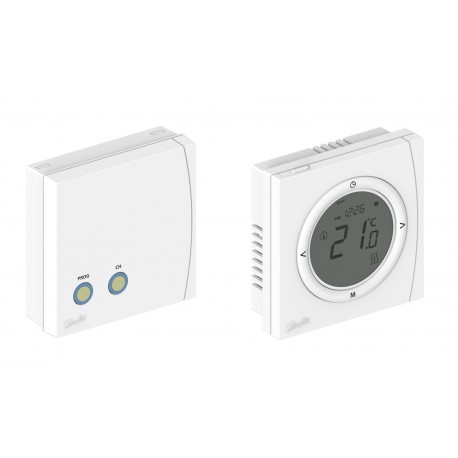

087N7936 DANFOSS HEATING TP5001RF G+ RX1-S Prog Stat RF + Rcv, V2
$0.00USD
4904 in stock
Key Specifications
EAN ():5715162419342
Type ():TP5001
Colour ():White RAL 9010
Volume ():1.373 Liter
Supplier Information
DANFOSS HEATING
Products: 5013
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5715162419342 |
| Type () | TP5001 |
| Colour () | White RAL 9010 |
| Volume () | 1.373 Liter |
| Approval () | CEUKCA |
| Material () | ABS+PC, non-flammable |
| Backplate () | Industry Standard Backplate for RX1-S V2 Receiver |
| Depth [mm] () | 30 mm |
| Net weight () | 465.4 Gram |
| Width [mm] () | 86 mm |
| Application () | Room heating |
| Description () | TP5001RF+RX1-S, Battery powered RF digital electronic programmable room thermostat and mains powered single channel RF receiver |
| Height [mm] () | 86 mm |
| Supply Type () | Batteries for thermostat + 230Vac for receiver |
| UNSPSC CODE () | 41112209 |
| Battery type () | 2 x AA alkaline batteries |
| CE evaluated () | Yes |
| Control type () | On/Off load compensation |
| EEE category () | 5 small equipment (any external dimension50 cm) |
| Gross weight () | 465.4 Gram |
| RF range [m] () | 30 m |
| Category name () | 5/2 Day Thermostat |
| Clock display () | AM/PM or 24 hour display |
| Product group () | Programmable Room Thermostats |
| Schedule type () | 5/2 day, 24 hour |
| Frequency [Hz] () | 50/60 Hz |
| On/Off control () | Yes |
| Built In sensor () | Yes |
| Design standard () | EN 60730-2-9 |
| On/Offs Per Day () | 4 |
| Warranty [Year] () | 5 |
| Back lit display () | Yes |
| Frost protection () | Yes |
| Holiday function () | Yes |
| In scope of WEEE () | Yes |
| SCIP dossier no. () | 1076e053-04a2-4646-987d-f4036bc6aef1 |
| Control pollution () | Degree 2 |
| Override function () | Yes |
| RF frequency [MHz] () | 433.92 MHz |
| UK RoHS compliance () | Yes |
| Product description () | TP5001RF + RX1-S V2 |
| Remote sensor option () | No |
| China RoHS compliance () | Out of scope |
| Delayed start control () | Yes |
| Low battery indicator () | Yes |
| Optimum start control () | Yes |
| Service Interval timer () | Yes |
| Temperature [°C] [Max] () | 35 °C |
| Temperature [°C] [Min] () | 5 °C |
| Ball hardness test [°C] () | 75 °C |
| Battery lifetime [Years] () | 2 yr |
| Automatic daylight saving () | Yes |
| On/off modulating control () | Yes |
| SCIP dossier product name () | Electronic programmable room thermostat |
| Factory pre-set programmes () | Yes |
| Rated impulse voltage [kV] () | 2.5 kV |
| Displays time or temperature () | Yes |
| Ambient temperature [°C] [max] () | 40 °C |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Output relay rating inductive [A] () | 1 A |
| Output relay rating resistive [A] () | 3 A |
| In scope of WEEE and contain batteries () | Yes |
Product Description
TP5001RF + RX1-S V2, Batteries for thermostat + 230Vac for receiver, 5/2 Day Thermostat
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
TP5001RF+RX1-S, Battery powered RF digital electronic programmable room thermostat and mains powered single channel RF receiver
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
