087N1110

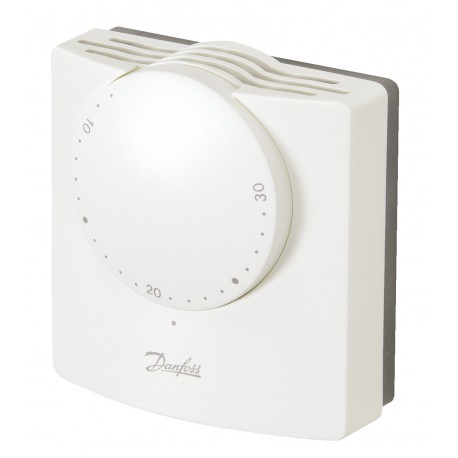

087N1110 DANFOSS HEATING RMT 230
$0.00USD
3431 in stock
Key Specifications
EAN ():5702420019185
Type ():RMT230
Media ():A
Volume ():0.356 Liter
Supplier Information
DANFOSS HEATING
Products: 5013
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702420019185 |
| Type () | RMT230 |
| Media () | A |
| Volume () | 0.356 Liter |
| Depth [mm] () | 40 mm |
| Net weight () | 0.134 Kilogram |
| Width [mm] () | 80 mm |
| Accelerator () | No |
| Description () | RMT230 , Electro mechanical room thermostat use in 230V system with SPDT type contact |
| Height [mm] () | 80 mm |
| EEE category () | 5 small equipment (any external dimension50 cm) |
| Gross weight () | 0.138 Kilogram |
| Category name () | Mechanical Dial Thermostat |
| Label product () | Yes |
| Product group () | Electro mechanical room thermostat |
| Night set-back () | No |
| Warranty [Year] () | 2 |
| In scope of WEEE () | Yes |
| EU RoHS compliance () | Yes |
| Product description () | RMT 230 |
| Built-In thermometer () | No |
| Supply voltage [V] AC () | 230 V |
| Temperature [°C] [Max] () | 30 °C |
| Temperature [°C] [Min] () | 8 °C |
| EU RoHS exemption clause () | No |
| REACH Candidate List substances () | No |
| Output relay rating inductive [A] () | 4 A |
| Output relay rating resistive [A] () | 10 A |
| Switching differential [°C] [Max] () | 1 °C |
Product Description
RMT 230, Mechanical Dial Thermostat
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
RMT230 , Electro mechanical room thermostat use in 230V system with SPDT type contact
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
