084Z8280

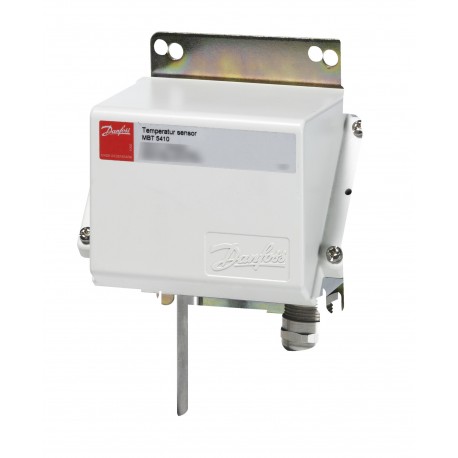

084Z8280 DANFOSS CONTROLES INDUSTRIALES Temperature sensor, MBT 5410
$0.00USD
3800 in stock
Key Specifications
EAN ():5702423131662
Type ():MBT 5410
Volume ():2.81 Liter
Net weight ():0.597 Kg
Supplier Information
DANFOSS INDUSTRIAL AUTOMATION
Products: 1269
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702423131662 |
| Type () | MBT 5410 |
| Volume () | 2.81 Liter |
| Net weight () | 0.597 Kg |
| Wires [pcs] () | 2 pc |
| Gross weight () | 0.68 Kg |
| Output signal () | Ohm |
| Product group () | Sensors |
| Sensor Insert () | Exchangeable |
| Insertion type () | Fixed |
| Packing format () | Multi pack |
| Type designation () | MBT 5410-000-060-000-0000 |
| EU RoHS compliance () | Yes with exemptions |
| Enclosure rating IP () | IP67 |
| Sensor element [pc] () | 1 pc |
| Sensor element type () | Pt |
| Electrical connection () | Box (metal/plastic) |
| Insertion length [in] () | 2.36 in |
| Insertion length [mm] () | 60 mm |
| Sensor element standard () | EN 60751 |
| Product Name Description () | Temperature sensor |
| Protection tube material () | AISI 316 Ti |
| Sensor element tolerance () | Class B |
| Number of terminals [pcs] () | 3 pc |
| Electrical connection size () | 2 terminals |
| Quantity per packing format () | 8 pc |
| Protection tube diameter [in] () | 0.4 in |
| Protection tube diameter [mm] () | 10 mm |
| Sensor elem. resistance [Ohm] () | 100 |
| Temperature range [°C] [max] () | 100 °C |
| Temperature range [°C] [min] () | -50 °C |
| Temperature range [°F] [max] () | 212 °F |
| Temperature range [°F] [min] () | -58 °F |
| Ambient temperature max. [°C] () | 85 °C |
| Ambient temperature max. [°F] () | 185 °F |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1)Dodecamethylcyclohexasiloxane (D6, CAS no. 540-97-6) |
| In scope of WEEE and contain batteries () | No |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Sensor elem. resistance [Ohm]: 100, Output signal: Ohm
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
