084Z8139

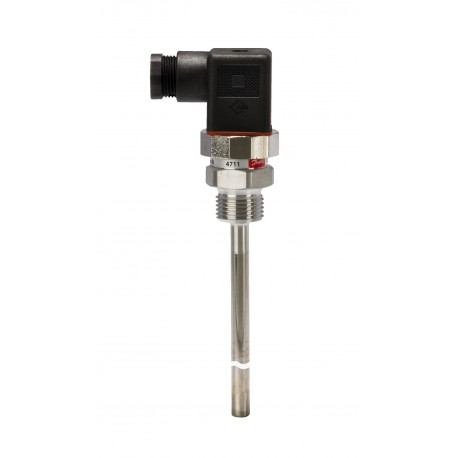

084Z8139 DANFOSS CONTROLES INDUSTRIALES Temperature sensor, MBT 5250
$0.00USD
3357 in stock
Key Specifications
EAN:5702423097326
Net weight:0.15 Kg
Wires [pcs]:2 pc
Gross weight:0.16 Kg
Supplier Information
DANFOSS INDUSTRIAL AUTOMATION
Products: 1269
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 5702423097326 |
| Net weight | 0.15 Kg |
| Wires [pcs] | 2 pc |
| Gross weight | 0.16 Kg |
| Product name | Temperature sensor |
| Product type | MBT 5250 |
| Output signal | Ohm |
| Product Group | Sensors |
| Sensor Insert | Exchangeable |
| Insertion type | Fixed |
| Packing format | Multi pack |
| Connection type | G |
| Type designation | MBT 5250-0100-100-220 |
| Connection material | Stainless steel |
| Connection standard | ISO 228 |
| Enclosure rating IP | IP65 |
| Process Connections | G1/2ISO 228-1-A |
| Sensor element [pc] | 1 pc |
| Sensor element type | Pt |
| Electrical connection | Plug |
| Insertion length [in] | 3.94 in |
| Insertion length [mm] | 100 mm |
| Process connection size | 1/2 |
| Process connection type | G |
| Sensor element standard | EN 60751 |
| Protection tube material | AISI 316 Ti |
| Sensor element tolerance | Class B |
| Number of terminals [pcs] | 3 pc |
| Electrical connection size | Pg 11 |
| Process connection material | Stainless steel |
| Process connection standard | ISO 228-1-A |
| Quantity per packing format | 20 pc |
| Electrical conn. Male/Female | Male and Female |
| Protection tube diameter [in] | 0.31 in |
| Protection tube diameter [mm] | 8 mm |
| Sensor elem. resistance [Ohm] | 1000 Ohm |
| Temperature range [°C] [Max] | 200 °C |
| Temperature range [°C] [Min] | -50 °C |
| Temperature range [°F] [Max] | 392 °F |
| Temperature range [°F] [Min] | -58 °F |
| Ambient temperature max. [°C] | 125 °C |
| Ambient temperature max. [°F] | 257 °F |
| Electrical connection standard | EN 175301-803-A |
| Process connection Male/Female | Male |
Product Description
Temperature sensor, MBT 5250, 100 mm, G,1/2
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
