084Z8090

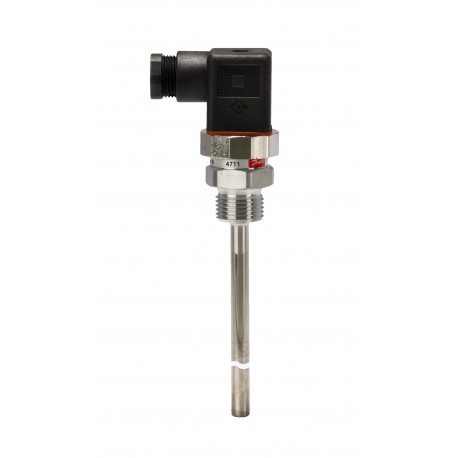

084Z8090 DANFOSS CONTROLES INDUSTRIALES Temperature sensor, MBT 5250
$0.00USD
3012 in stock
Key Specifications
EAN ():5702423093052
Type ():MBT 5250
Volume ():0.305 Liter
Net weight ():0.201 Kg
Supplier Information
DANFOSS INDUSTRIAL AUTOMATION
Products: 1269
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702423093052 |
| Type () | MBT 5250 |
| Volume () | 0.305 Liter |
| Net weight () | 0.201 Kg |
| Wires [pcs] () | 2 pc |
| Gross weight () | 0.205 Kg |
| Output signal () | Ohm |
| Product group () | Sensors |
| Sensor Insert () | Exchangeable |
| Insertion type () | Fixed |
| Packing format () | Multi pack |
| Connection type () | G |
| SCIP dossier no. () | 1741c763-fa54-4cb9-973c-52e51e4079b9 |
| Type designation () | MBT 5250-0010-080-320 |
| EU RoHS compliance () | Yes with exemptions |
| Connection material () | Stainless steel |
| Connection standard () | ISO 228 |
| Enclosure rating IP () | IP65 |
| Sensor element [pc] () | 1 pc |
| Sensor element type () | Pt |
| Electrical connection () | Plug |
| Insertion length [in] () | 3.15 in |
| Insertion length [mm] () | 80 mm |
| Process connection size () | 1/2 |
| Process connection type () | G |
| Sensor element standard () | EN 60751 |
| Product Name Description () | Temperature sensor |
| Protection tube material () | AISI 316 Ti |
| Sensor element tolerance () | Class B |
| Number of terminals [pcs] () | 3 pc |
| Electrical connection size () | Pg 13.5 |
| Process connection material () | Stainless steel |
| Process connection standard () | ISO 228-1-A |
| Quantity per packing format () | 20 pc |
| Electrical conn. Male/Female () | Male and Female |
| Sensor elem. resistance [Ohm] () | 100 |
| Temperature range [°C] [max] () | 200 °C |
| Temperature range [°C] [min] () | -50 °C |
| Temperature range [°F] [max] () | 392 °F |
| Temperature range [°F] [min] () | -58 °F |
| Ambient temperature max. [°C] () | 125 °C |
| Ambient temperature max. [°F] () | 257 °F |
| Electrical connection standard () | EN 175301-803-A |
| Process connection Male/Female () | Male |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1)Dodecamethylcyclohexasiloxane (D6, CAS no. 540-97-6) |
| Protection tube diameter [in] [max] () | 0.57 in |
| Protection tube diameter [in] [min] () | 0.47 in |
| Protection tube diameter [mm] [max] () | 14.5 mm |
| Protection tube diameter [mm] [min] () | 12 mm |
| In scope of WEEE and contain batteries () | No |
Product Description
Temperature sensor, MBT 5250, 80 mm, G,1/2
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Temperature range [°C]: -50 - 200, Sensor element type: Pt, Sensor elem. resistance [Ohm]: 100, Protection tube material: AISI 316 Ti, Electrical connection: Plug, Electrical connection size: Pg 13.5
