084Z7268

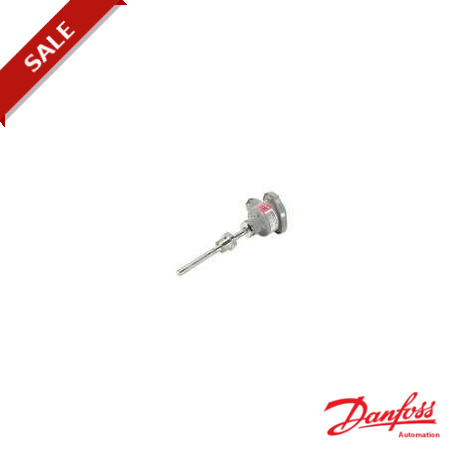

084Z7268 DANFOSS CONTROLES INDUSTRIALES Process connection type: G1/2ISO 228-1-A1/2ISO 228-1-A1/2ISO 228-1-A..
$0.00USD
4175 in stock
Key Specifications
EAN:5702423200955
Net weight:0.38 Kg
Wires [pcs]:2 pc
Gross weight:0.38 Kg
Supplier Information
DANFOSS INDUSTRIAL AUTOMATION
Products: 1269
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 5702423200955 |
| Net weight | 0.38 Kg |
| Wires [pcs] | 2 pc |
| Gross weight | 0.38 Kg |
| Product type | MBT 5252 |
| Sensor Insert | Exchangeable |
| Packing format | Multi pack |
| Connection type | G |
| Transmitter type | Standard |
| Type designation | MBT 5252-0011-0050-0200-G205 |
| Connection standard | ISO 228 |
| Enclosure rating IP | IP65 |
| Sensor element [pc] | 1 pc |
| Sensor element type | Pt |
| Electrical connection | Type B |
| Extension length [mm] | 50 mm |
| Insertion length [mm] | 50 mm |
| Process connection size | 1/2 |
| Process connection type | G1/2ISO 228-1-A1/2ISO 228-1-A1/2ISO 228-1-A1/2ISO 228-1-A |
| Sensor element standard | EN 60751 |
| Output signal [mA] [Max] | 20 mA |
| Output signal [mA] [Min] | 4 mA |
| Protection tube material | AISI 316 Ti |
| Sensor element tolerance | Class B |
| Number of terminals [pcs] | 3 pc |
| Electrical connection size | Pg 16 |
| Process connection standard | ISO 228-1-A |
| Quantity per packing format | 10 pc |
| Supply voltage [V] DC [Max] | 35 V |
| Supply voltage [V] DC [Min] | 8 V |
| Protection tube diameter [in] | 0.4 in |
| Protection tube diameter [mm] | 10 mm |
| Sensor elem. resistance [Ohm] | 100 Ohm |
| Temperature range [°C] [Max] | 200 °C |
| Temperature range [°C] [Min] | -50 °C |
| Temperature range [°F] [Max] | 392 °F |
| Temperature range [°F] [Min] | -58 °F |
| Ambient temperature max. [°C] | 85 °C |
| Ambient temperature max. [°F] | 185 °F |
| Transmitter setting range [°C] [Max] | 50 °C |
| Transmitter setting range [°C] [Min] | -10 °C |
