In Stock Hot Product

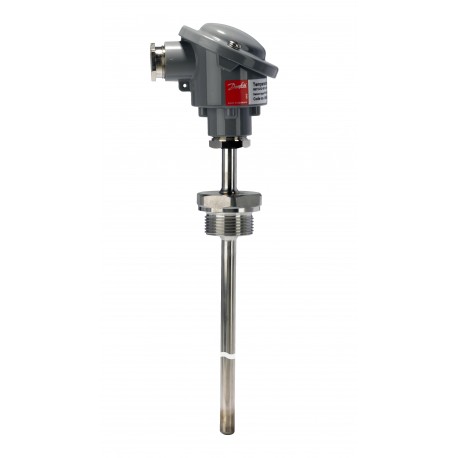

084Z6057
084Z6057 DANFOSS CONTROLES INDUSTRIALES Process connection type: G1/2ISO 228-1-A1/2ISO 228-1-A1/2ISO 228-1-A..
$0.00USD
4783 in stock
Key Specifications
EAN:5702423128884
Net weight:0.42 Kg
Wires [pcs]:4 pc
Gross weight:0.42 Kg
Supplier Information
DANFOSS INDUSTRIAL AUTOMATION
Products: 1269
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 5702423128884 |
| Net weight | 0.42 Kg |
| Wires [pcs] | 4 pc |
| Gross weight | 0.42 Kg |
| Product type | MBT 5252 |
| Output signal | Ohm |
| Sensor Insert | Exchangeable |
| Packing format | Multi pack |
| Connection type | G |
| Type designation | MBT 5252-0011-0150-0201-0000 |
| Connection standard | ISO 228 |
| Enclosure rating IP | IP65 |
| Sensor element [pc] | 1 pc |
| Sensor element type | Pt |
| Electrical connection | Type B |
| Extension length [in] | 1.97 in |
| Extension length [mm] | 50 mm |
| Insertion length [in] | 5.91 in |
| Insertion length [mm] | 150 mm |
| Process connection size | 1/2 |
| Process connection type | G1/2ISO 228-1-A1/2ISO 228-1-A1/2ISO 228-1-A1/2ISO 228-1-A |
| Sensor element standard | EN 60751 |
| Protection tube material | AISI 316 Ti |
| Sensor element tolerance | Class B |
| Number of terminals [pcs] | 4 pc |
| Electrical connection size | Pg 16 |
| Process connection material | Stainless steel |
| Process connection standard | ISO 228-1-A |
| Quantity per packing format | 10 pc |
| Protection tube diameter [in] | 0.4 in |
| Protection tube diameter [mm] | 10 mm |
| Sensor elem. resistance [Ohm] | 100 Ohm |
| Temperature range [°C] [Max] | 200 °C |
| Temperature range [°C] [Min] | -50 °C |
| Temperature range [°F] [Max] | 392 °F |
| Temperature range [°F] [Min] | -58 °F |
| Ambient temperature max. [°C] | 90 °C |
| Ambient temperature max. [°F] | 194 °F |
| Process connection Male/Female | Male |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
