In Stock Hot Product

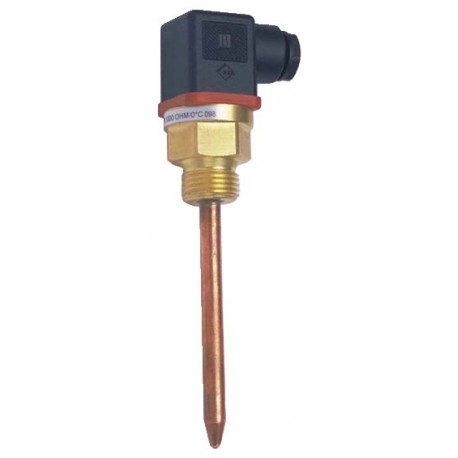

084Z6056
084Z6056 DANFOSS CONTROLES INDUSTRIALES Process connection type: G1/2ISO 228-1-A1/2ISO 228-1-A1/2ISO 228-1-A..
$0.00USD
3716 in stock
Key Specifications
EAN:5702423128228
Net weight:0.12 Kg
Wires [pcs]:2 pc
Gross weight:0.12 Kg
Supplier Information
DANFOSS INDUSTRIAL AUTOMATION
Products: 1269
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 5702423128228 |
| Net weight | 0.12 Kg |
| Wires [pcs] | 2 pc |
| Gross weight | 0.12 Kg |
| Product type | MBT 3260 |
| Output signal | Ohm |
| Sensor Insert | Fixed |
| Packing format | Multi pack |
| Connection type | G |
| Connection notes | Goldplated |
| Type designation | MBT 3260-0100-050-120 |
| Connection material | Brass |
| Connection standard | ISO 228 |
| Enclosure rating IP | IP54 |
| Sensor element [pc] | 1 pc |
| Sensor element type | Pt |
| Insertion length [in] | 2 in |
| Insertion length [mm] | 50 mm |
| Process connection size | 1/2 |
| Process connection type | G1/2ISO 228-1-A1/2ISO 228-1-A1/2ISO 228-1-A1/2ISO 228-1-A |
| Sensor element standard | EN 60751 |
| Protection tube material | COPPER |
| Sensor element tolerance | Class B |
| Number of terminals [pcs] | 3 pc |
| Electrical connection size | Pg 9 |
| Process connection material | Brass |
| Process connection standard | ISO 228-1-A |
| Quantity per packing format | 20 pc |
| Electrical conn. Male/Female | Male and Female |
| Protection tube diameter [in] | 0.3 in |
| Protection tube diameter [mm] | 7.5 mm |
| Sensor elem. resistance [Ohm] | 1000 Ohm |
| Temperature range [°C] [Max] | 120 °C |
| Temperature range [°C] [Min] | -50 °C |
| Temperature range [°F] [Max] | 248 °F |
| Temperature range [°F] [Min] | -58 °F |
| Ambient temperature max. [°C] | 120 °C |
| Ambient temperature max. [°F] | 248 °F |
| Electrical connection standard | EN 175301-803-A |
| Process connection Male/Female | Male |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
