084Z4091

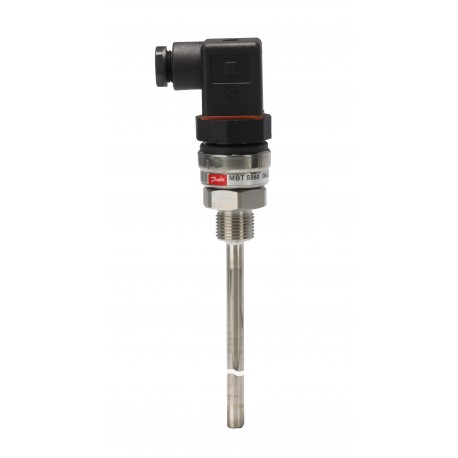

084Z4091 DANFOSS CONTROLES INDUSTRIALES Temperature sensor, MBT 5560
$0.00USD
4100 in stock
Key Specifications
EAN:5702423241248
Net weight:0.17 Kg
Gross weight:0.19 Kg
Product name:Temperature sensor
Supplier Information
DANFOSS INDUSTRIAL AUTOMATION
Products: 1269
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 5702423241248 |
| Net weight | 0.17 Kg |
| Gross weight | 0.19 Kg |
| Product name | Temperature sensor |
| Product type | MBT 5560 |
| Product Group | L |
| Sensor Insert | Fixed |
| Insertion type | Fixed |
| Packing format | Multi pack |
| Connection type | M |
| Transmitter type | Integrated |
| Type designation | MBT 5560-0000-0100-16-110 |
| Connection material | AISI 316 Ti |
| Enclosure rating IP | IP65 |
| Process Connections | M18x1.5ISO 965 |
| Sensor element [pc] | 1 pc |
| Sensor element type | Pt |
| Insertion length [in] | 3.94 in |
| Insertion length [mm] | 100 mm |
| Process connection size | 18x1.5 |
| Process connection type | M |
| Output signal [mA] [Max] | 20 mA |
| Output signal [mA] [Min] | 4 mA |
| Protection tube material | AISI 316 Ti |
| Sensor element tolerance | < ± 1% FS |
| Electrical connection size | Pg 9 |
| Process connection material | Stainless steel |
| Process connection standard | ISO 965 |
| Quantity per packing format | 13 pc |
| Supply voltage [V] DC [Max] | 32 V |
| Supply voltage [V] DC [Min] | 10 V |
| Electrical conn. Male/Female | Male and Female |
| Protection tube diameter [in] | 0.31 in |
| Protection tube diameter [mm] | 8 mm |
| Sensor elem. resistance [Ohm] | 1000 Ohm |
| Temperature range [°C] [Max] | 200 °C |
| Temperature range [°C] [Min] | -50 °C |
| Temperature range [°F] [Max] | 392 °F |
| Temperature range [°F] [Min] | -58 °F |
| Ambient temperature max. [°C] | 85 °C |
| Ambient temperature max. [°F] | 185 °F |
| Electrical connection standard | EN 175301-803-A |
| Process connection Male/Female | Male |
| Transmitter setting range [°C] [Max] | 100 °C |
| Transmitter setting range [°C] [Min] | 0 °C |
| Transmitter setting range [°F] [Max] | 212 °F |
| Transmitter setting range [°F] [Min] | 32 °F |
Product Description
Temperature sensor, MBT 5560, 100mm, M,18x1.5
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
