084Z4061

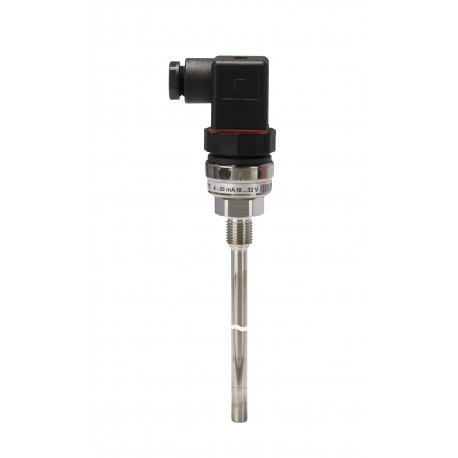

084Z4061 DANFOSS CONTROLES INDUSTRIALES Temperature sensor, MBT 5560
$0.00USD
4764 in stock
Key Specifications
EAN ():5702423224364
Type ():MBT 5560
Volume ():0.069 Liter
Net weight ():0.142 Kg
Supplier Information
DANFOSS INDUSTRIAL AUTOMATION
Products: 1269
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702423224364 |
| Type () | MBT 5560 |
| Volume () | 0.069 Liter |
| Net weight () | 0.142 Kg |
| Gross weight () | 0.194 Kg |
| Product group () | Sensors |
| Sensor Insert () | Fixed |
| Insertion type () | Fixed |
| Packing format () | Multi pack |
| Connection type () | G |
| Transmitter type () | Integrated |
| Type designation () | MBT 5560-0000-0200-10-420 |
| EU RoHS compliance () | Yes with exemptions |
| Connection material () | AISI 316 Ti |
| Connection standard () | ISO 228 |
| Enclosure rating IP () | IP65 |
| Insertion length [in] () | 7.87 in |
| Insertion length [mm] () | 200 mm |
| Process connection size () | 1/4 |
| Process connection type () | G |
| Output signal [mA] [max] () | 20 mA |
| Output signal [mA] [min] () | 4 mA |
| Product Name Description () | Temperature sensor |
| Protection tube material () | AISI 316 Ti |
| Sensor element tolerance () | ± 1% FS |
| Electrical connection size () | Pg 9 |
| Process connection material () | Stainless steel |
| Process connection standard () | ISO 228-1-A |
| Quantity per packing format () | 9 pc |
| Supply voltage [V] DC [max] () | 32 V |
| Supply voltage [V] DC [min] () | 10 V |
| Electrical conn. Male/Female () | Male and Female |
| Protection tube diameter [in] () | 0.31 in |
| Protection tube diameter [mm] () | 8 mm |
| Temperature range [°C] [max] () | 200 °C |
| Temperature range [°C] [min] () | -50 °C |
| Temperature range [°F] [max] () | 392 °F |
| Temperature range [°F] [min] () | -58 °F |
| Ambient temperature max. [°C] () | 85 °C |
| Ambient temperature max. [°F] () | 185 °F |
| Electrical connection standard () | EN 175301-803-A |
| Process connection Male/Female () | Male |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1)Dodecamethylcyclohexasiloxane (D6, CAS no. 540-97-6) |
| Transmitter setting range [°C] [max] () | 200 °C |
| Transmitter setting range [°C] [min] () | -50 °C |
| Transmitter setting range [°F] [max] () | 392 °F |
| Transmitter setting range [°F] [min] () | -58 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
Temperature sensor, MBT 5560, 200 mm, G,1/4
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Temperature range [°C]: -50 - 200, Electrical connection size: Pg 9, Protection tube material: AISI 316 Ti
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
