084Z3099

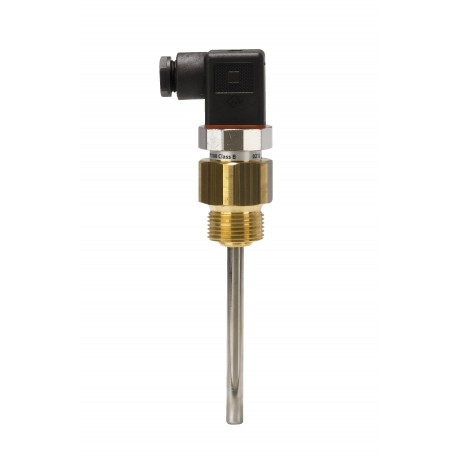

084Z3099 DANFOSS CONTROLES INDUSTRIALES Process connection standard: ISO 228-1-A, Sensor element type: Pt, S..
$0.00USD
4540 in stock
Key Specifications
EAN:5702423238781
Net weight:0.29 Kg
Wires [pcs]:2 pc
Gross weight:0.29 Kg
Supplier Information
DANFOSS INDUSTRIAL AUTOMATION
Products: 1269
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 5702423238781 |
| Net weight | 0.29 Kg |
| Wires [pcs] | 2 pc |
| Gross weight | 0.29 Kg |
| Product type | MBT 5310 |
| Output signal | Ohm |
| Product Group | MULTI BLOCK |
| Sensor Insert | Fixed |
| Insertion type | Variable |
| Packing format | Multi pack |
| Connection type | G |
| Type designation | MBT 5310-00-100-130 |
| Connection material | Brass |
| Connection standard | ISO 228 |
| Enclosure rating IP | IP65 |
| Sensor element [pc] | 1 pc |
| Sensor element type | Pt |
| Sensor element standard | EN 60751 |
| Protection tube material | AISI 316 Ti |
| Sensor element tolerance | Class B |
| Number of terminals [pcs] | 3 pc |
| Electrical connection size | Pg 9 |
| Insertion length [in] [Max] | 3.93 in |
| Insertion length [in] [Min] | 3.35 in |
| Insertion length [mm] [Max] | 100 mm |
| Insertion length [mm] [Min] | 85 mm |
| Process connection material | Brass |
| Process connection standard | ISO 228-1-A |
| Quantity per packing format | 20 pc |
| Electrical conn. Male/Female | Male and Female |
| Protection tube diameter [in] | 0.31 in |
| Protection tube diameter [mm] | 8 mm |
| Sensor elem. resistance [Ohm] | 100 Ohm |
| Temperature range [°C] [Max] | 200 °C |
| Temperature range [°C] [Min] | -50 °C |
| Temperature range [°F] [Max] | 392 °F |
| Temperature range [°F] [Min] | -58 °F |
| Ambient temperature max. [°C] | 125 °C |
| Ambient temperature max. [°F] | 257 °F |
| Electrical connection standard | EN 175301-803-A |
| Process connection Male/Female | Male |
