In Stock Hot Product
084Z2442

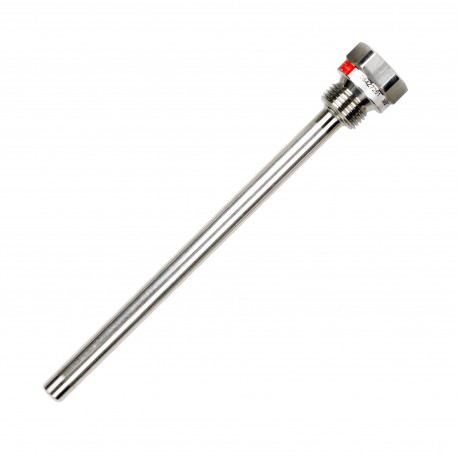

084Z2442 DANFOSS CONTROLES INDUSTRIALES Temperature sensor, MBT 120
$0.00USD
3224 in stock
Key Specifications
EAN ():5702428973366
Type ():MBT 120
Volume ():0.198 Liter
Net weight ():0.132 Kg
Supplier Information
DANFOSS INDUSTRIAL AUTOMATION
Products: 1269
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428973366 |
| Type () | MBT 120 |
| Volume () | 0.198 Liter |
| Net weight () | 0.132 Kg |
| Gross weight () | 0.14 Kg |
| Product group () | Accessories, sensors |
| Packing format () | Multi pack |
| Connection type () | G |
| Type designation () | MBT 120-630-200-C |
| Used for product () | MBT 3560, MBT 5560 |
| EU RoHS compliance () | Yes with exemptions |
| Connection material () | AISI 316 Ti |
| Connection standard () | ISO 228 |
| Insertion length [in] () | 7.87 in |
| Insertion length [mm] () | 200 mm |
| Process connection size () | 1/2 |
| Process connection type () | G |
| Internal connection size () | 1/2 |
| Internal connection type () | G |
| Product Name Description () | Sensor pocket |
| Protection tube material () | AISI 316 Ti |
| Process connection material () | AISI 316 Ti |
| Process connection standard () | ISO 228-1-A |
| Quantity per packing format () | 20 pc |
| Protection tube diameter [in] () | 0.43 in |
| Protection tube diameter [mm] () | 11 mm |
| Temperature range [°C] [max] () | 200 °C |
| Temperature range [°C] [min] () | -50 °C |
| Temperature range [°F] [max] () | 392 °F |
| Temperature range [°F] [min] () | -58 °F |
| Process connection Male/Female () | Male |
| REACH Candidate List substances () | No |
| In scope of WEEE and contain batteries () | No |
Product Description
Sensor pocket, MBT 120
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Protection tube diameter [mm]: 11.0, Insertion length [mm]: 200, Process connection type: G, 1/2, Temperature range [°C]: -50 - 200, Protection tube material: AISI 316 Ti, Used for product: MBT 3560, MBT 5560
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
