084Z2275

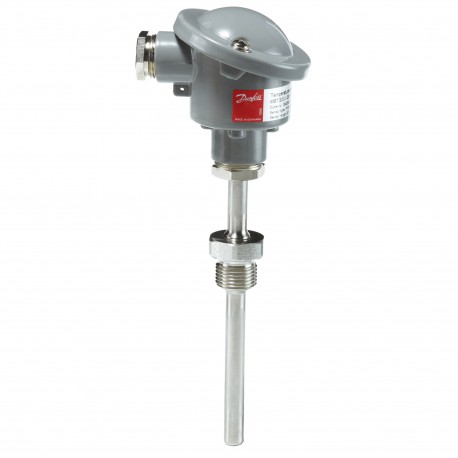

084Z2275 DANFOSS CONTROLES INDUSTRIALES Temperature sensor, MBT 3252
$0.00USD
4323 in stock
Key Specifications
EAN ():5702428849494
Type ():MBT 3252
Volume ():1.368 Liter
Net weight ():0.466 Kg
Supplier Information
DANFOSS INDUSTRIAL AUTOMATION
Products: 1269
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428849494 |
| Type () | MBT 3252 |
| Volume () | 1.368 Liter |
| Net weight () | 0.466 Kg |
| Wires [pcs] () | 2 pc |
| Gross weight () | 0.477 Kg |
| Product group () | Sensors |
| Sensor Insert () | Exchangeable |
| Insertion type () | Fixed |
| Packing format () | Multi pack |
| Connection type () | G |
| SCIP dossier no. () | ab5a5d0b-78ac-4b3e-a6f6-bc20d26a29a6 |
| Transmitter type () | Standard |
| Type designation () | MBT 3252-0011-0250-0200-G110 |
| EU RoHS compliance () | Yes with exemptions |
| Connection material () | Stainless steel |
| Connection standard () | ISO 228 |
| Enclosure rating IP () | IP65 |
| Sensor element [pc] () | 1 pc |
| Sensor element type () | Pt |
| Electrical connection () | Type B |
| Extension length [in] () | 1.97 in |
| Extension length [mm] () | 50 mm |
| Insertion length [in] () | 9.84 in |
| Insertion length [mm] () | 250 mm |
| Process connection size () | 1/2 |
| Process connection type () | G |
| Sensor element standard () | EN 60751 |
| Output signal [mA] [max] () | 20 mA |
| Output signal [mA] [min] () | 4 mA |
| Product Name Description () | Temperature sensor |
| Protection tube material () | AISI 316 Ti |
| Sensor element tolerance () | Class B |
| Number of terminals [pcs] () | 3 pc |
| Electrical connection size () | Pg 16 |
| Process connection material () | Stainless steel |
| Process connection standard () | ISO 228-1-A |
| Quantity per packing format () | 6 pc |
| Supply voltage [V] DC [max] () | 35 V |
| Supply voltage [V] DC [min] () | 8 V |
| Protection tube diameter [in] () | 0.4 in |
| Protection tube diameter [mm] () | 10 mm |
| Sensor elem. resistance [Ohm] () | 100 |
| Temperature range [°C] [max] () | 200 °C |
| Temperature range [°C] [min] () | -50 °C |
| Temperature range [°F] [max] () | 392 °F |
| Temperature range [°F] [min] () | -58 °F |
| Ambient temperature max. [°C] () | 85 °C |
| Ambient temperature max. [°F] () | 185 °F |
| Process connection Male/Female () | Male |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1)Dodecamethylcyclohexasiloxane (D6, CAS no. 540-97-6) |
| Transmitter setting range [°C] [max] () | 100 °C |
| Transmitter setting range [°C] [min] () | 0 °C |
| Transmitter setting range [°F] [max] () | 212 °F |
| Transmitter setting range [°F] [min] () | 32 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
Temperature sensor, MBT 3252, 250 mm, G,1/2
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Temperature range [°C]: -50 - 200, Sensor element type: Pt, Sensor elem. resistance [Ohm]: 100, Protection tube material: AISI 316 Ti, Electrical connection: Type B, Electrical connection size: Pg 16
