084Z2214

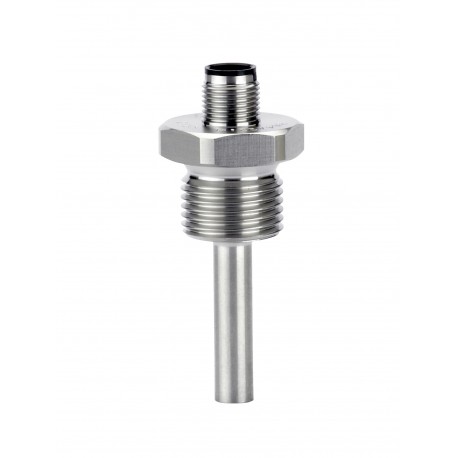

084Z2214 DANFOSS CONTROLES INDUSTRIALES Temperature sensor, MBT 3270
$0.00USD
3043 in stock
Key Specifications
EAN ():5702428819152
Type ():MBT 3270
Volume ():0.066 Liter
Net weight ():0.071 Kg
Supplier Information
DANFOSS INDUSTRIAL AUTOMATION
Products: 1269
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428819152 |
| Type () | MBT 3270 |
| Volume () | 0.066 Liter |
| Net weight () | 0.071 Kg |
| Wires [pcs] () | 4 pc |
| Gross weight () | 0.073 Kg |
| Output signal () | Ohm |
| Product group () | Sensors |
| Sensor Insert () | Fixed |
| Insertion type () | Fixed |
| Packing format () | Multi pack |
| Connection type () | G |
| SCIP dossier no. () | 4562dfd6-7b4b-4298-811a-8ce9624f4579 |
| Type designation () | MBT 3270-00002-050-20F20 |
| EU RoHS compliance () | Yes with exemptions |
| Connection material () | AISI 303 |
| Enclosure rating IP () | IP65 |
| Sensor element [pc] () | 1 pc |
| Sensor element type () | Pt |
| Electrical connection () | M12 x 1 |
| Insertion length [in] () | 1.97 in |
| Insertion length [mm] () | 50 mm |
| Process connection size () | 1/2 |
| Process connection type () | G |
| Sensor element standard () | EN 60751 |
| Product Name Description () | Temperature sensor |
| Protection tube material () | AISI 303 |
| Sensor element tolerance () | Class B |
| Electrical connection size () | 4 pin |
| Process connection material () | Stainless steel |
| Process connection standard () | ISO 228-1-A |
| Quantity per packing format () | 40 pc |
| Electrical conn. Male/Female () | Male |
| Protection tube diameter [in] () | 0.31 in |
| Protection tube diameter [mm] () | 8 mm |
| Sensor elem. resistance [Ohm] () | 100 |
| Temperature range [°C] [max] () | 200 °C |
| Temperature range [°C] [min] () | -50 °C |
| Temperature range [°F] [max] () | 392 °F |
| Temperature range [°F] [min] () | -58 °F |
| Ambient temperature max. [°C] () | 125 °C |
| Ambient temperature max. [°F] () | 257 °F |
| Electrical connection standard () | EN 60947-5-2 |
| Process connection Male/Female () | Male |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1)Dodecamethylcyclohexasiloxane (D6, CAS no. 540-97-6) |
| In scope of WEEE and contain batteries () | No |
Product Description
Temperature sensor, MBT 3270, 50 mm, G,1/2
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Temperature range [°C]: -50 - 200, Sensor element type: Pt, Sensor elem. resistance [Ohm]: 100, Protection tube material: AISI 303, Electrical connection: M12 x 1, Electrical connection size: 4 pin
