084Z2118

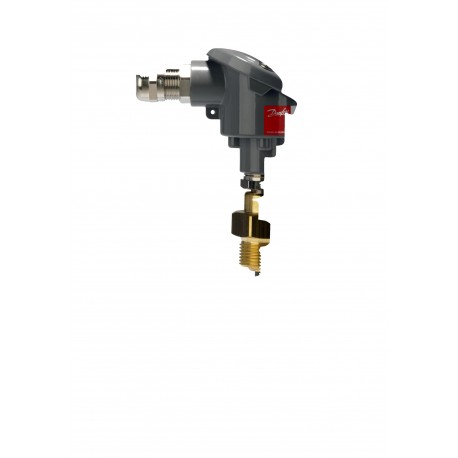

084Z2118 DANFOSS CONTROLES INDUSTRIALES Temperature sensor, MBT 5310
$0.00USD
3105 in stock
Key Specifications
EAN ():5702428433273
Type ():MBT 5310
Volume ():1.149 Liter
Net weight ():0.466 Kg
Supplier Information
DANFOSS INDUSTRIAL AUTOMATION
Products: 1269
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428433273 |
| Type () | MBT 5310 |
| Volume () | 1.149 Liter |
| Net weight () | 0.466 Kg |
| Wires [pcs] () | 3 pc |
| Gross weight () | 0.474 Kg |
| Product group () | Sensors |
| Sensor Insert () | Fixed |
| Insertion type () | Variable |
| Packing format () | Multi pack |
| Connection type () | G |
| SCIP dossier no. () | 7e8c0ff3-1e7a-4680-b92c-bfbffbb08416 |
| Transmitter type () | Standard |
| Type designation () | MBT 5310-00-152-930 |
| EU RoHS compliance () | Yes with exemptions |
| Connection material () | Brass |
| Connection standard () | ISO 228 |
| Enclosure rating IP () | IP65 |
| Sensor element [pc] () | 1 pc |
| Sensor element type () | Pt |
| Electrical connection () | Type B |
| Insertion length [in] () | 5.98 in |
| Insertion length [mm] () | 152 mm |
| Process connection size () | 3/4 |
| Process connection type () | G |
| Sensor element standard () | EN 60751 |
| Output signal [mA] [max] () | 20 mA |
| Output signal [mA] [min] () | 4 mA |
| Product Name Description () | Temperature sensor |
| Protection tube material () | AISI 316 Ti |
| Sensor element tolerance () | Class B |
| Number of terminals [pcs] () | 3 pc |
| Electrical connection size () | Pg 16 |
| Process connection material () | Brass |
| Process connection standard () | ISO 228-1-A |
| Quantity per packing format () | 10 pc |
| Supply voltage [V] DC [max] () | 35 V |
| Supply voltage [V] DC [min] () | 8 V |
| Protection tube diameter [in] () | 0.31 in |
| Protection tube diameter [mm] () | 8 mm |
| Sensor elem. resistance [Ohm] () | 100 |
| Temperature range [°C] [max] () | 200 °C |
| Temperature range [°C] [min] () | -50 °C |
| Temperature range [°F] [max] () | 392 °F |
| Temperature range [°F] [min] () | -58 °F |
| Ambient temperature max. [°C] () | 85 °C |
| Ambient temperature max. [°F] () | 185 °F |
| Process connection Male/Female () | Male |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Transmitter setting range [°C] [max] () | 120 °C |
| Transmitter setting range [°C] [min] () | -10 °C |
| Transmitter setting range [°F] [max] () | 248 °F |
| Transmitter setting range [°F] [min] () | 14 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
Temperature sensor, MBT 5310, 152 mm, G,3/4
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Temperature range [°C]: -50 - 200, Sensor element type: Pt, Sensor elem. resistance [Ohm]: 100, Protection tube material: AISI 316 Ti, Electrical connection: Type B, Electrical connection size: Pg 16
