084Z2077

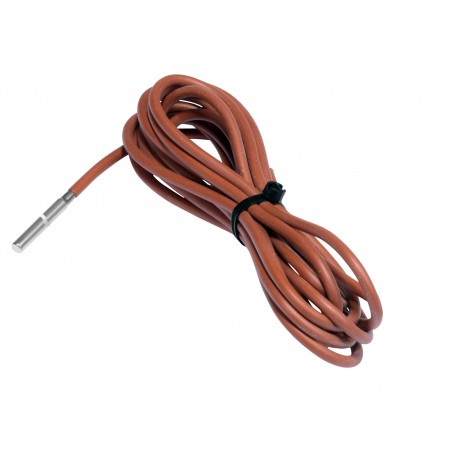

084Z2077 DANFOSS CONTROLES INDUSTRIALES Temperature sensor, MBT 153
$0.00USD
3466 in stock
Key Specifications
EAN ():5702428409476
Type ():MBT 153
Volume ():0.512 Liter
Cable type ():Silicone
Supplier Information
DANFOSS INDUSTRIAL AUTOMATION
Products: 1269
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428409476 |
| Type () | MBT 153 |
| Volume () | 0.512 Liter |
| Cable type () | Silicone |
| Net weight () | 0.181 Kg |
| Wires [pcs] () | 4 pc |
| Gross weight () | 0.184 Kg |
| Output signal () | Ohm |
| Product group () | Sensors |
| Insertion type () | Variable |
| Packing format () | Multi pack |
| Cable length [m] () | 5.5 m |
| SCIP dossier no. () | fdf4160e-1955-41c0-8584-16b48c4e3655 |
| Type designation () | MBT 153-2032-0550 |
| Cable length [in] () | 216.54 in |
| EU RoHS compliance () | Yes with exemptions |
| Sensor element [pc] () | 1 pc |
| Sensor element type () | Pt |
| Electrical connection () | Cable |
| Sensor element standard () | EN 60751 |
| Product Name Description () | Temperature sensor |
| Protection tube material () | AISI 305 |
| Sensor element tolerance () | Class A |
| Electrical connection size () | 4 wire |
| Quantity per packing format () | 30 pc |
| Protection tube diameter [in] () | 0.24 in |
| Protection tube diameter [mm] () | 6 mm |
| Sensor elem. resistance [Ohm] () | 100 |
| Temperature range [°C] [max] () | 200 °C |
| Temperature range [°C] [min] () | -50 °C |
| Temperature range [°F] [max] () | 392 °F |
| Temperature range [°F] [min] () | -58 °F |
| Cable tempr. range [°C] [max] () | 200 °C |
| Cable tempr. range [°C] [min] () | -60 °C |
| Cable tempr. range [°F] [max] () | 392 °F |
| Cable tempr. range [°F] [min] () | -76 °F |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1)Dodecamethylcyclohexasiloxane (D6, CAS no. 540-97-6) |
| In scope of WEEE and contain batteries () | No |
Product Description
Temperature sensor, MBT 153, 5.50 m, Pt, 100 Ohm
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Electrical connection: Cable, Cable type: Silicone
