084Z2068

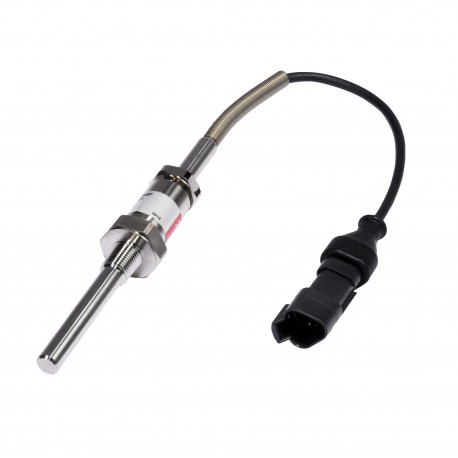

084Z2068 DANFOSS CONTROLES INDUSTRIALES Temperature sensor, MBT 5116
$0.00USD
4917 in stock
Key Specifications
EAN ():5702423295739
Type ():MBT 5116
Volume ():0.81 Liter
Net weight ():0.237 Kilogram
Supplier Information
DANFOSS INDUSTRIAL AUTOMATION
Products: 1269
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702423295739 |
| Type () | MBT 5116 |
| Volume () | 0.81 Liter |
| Net weight () | 0.237 Kilogram |
| Wires [pcs] () | 2 pc |
| CE evaluated () | Yes |
| EEE category () | 5 small equipment (any external dimension50 cm) |
| Gross weight () | 0.24 Kilogram |
| Output signal () | Ohm |
| Product group () | Sensors |
| Sensor Insert () | Exchangeable |
| Insertion type () | Fixed |
| Packing format () | Multi pack |
| Connection type () | NPT |
| In scope of WEEE () | Yes |
| SCIP dossier no. () | daa062e2-e8c0-4d66-a1fa-e3b4de3cda2a |
| Type designation () | MBT 5116-C000-080-5103-030 |
| EU RoHS compliance () | Yes with exemptions |
| UK RoHS compliance () | Yes with exemptions |
| Connection material () | AISI 316 Ti |
| Connection standard () | ISO 228 |
| Enclosure rating IP () | IP65 |
| Sensor element [pc] () | 1 pc |
| Sensor element type () | Pt |
| China RoHS compliance () | Yes exceed limitations |
| Electrical connection () | Deutsch DT04 |
| Insertion length [in] () | 3.15 in |
| Insertion length [mm] () | 80 mm |
| Process connection size () | 1/4-18 |
| Process connection type () | NPT |
| Sensor element standard () | EN 60751 |
| EU RoHS exemption clause () | 6(a)6(b)6(c)7(a)7(c)-I |
| Product Name Description () | Temperature sensor |
| Protection tube material () | AISI 316 Ti |
| Sensor element tolerance () | Class B |
| UK RoHS exemption clause () | 1215181921 |
| Electrical conn. comments () | Flying leads |
| Number of terminals [pcs] () | 3 pc |
| Electrical connection size () | 3 pin |
| Process connection material () | AISI 316 Ti |
| Process connection standard () | ANSI/ASME B1.20.1 |
| Quantity per packing format () | 9 pc |
| Sensor elem. resistance [Ohm] () | 100 |
| Temperature range [°C] [max] () | 600 °C |
| Temperature range [°C] [min] () | -50 °C |
| Temperature range [°F] [max] () | 1112 °F |
| Temperature range [°F] [min] () | -58 °F |
| Ambient temperature max. [°C] () | 75 °C |
| Ambient temperature max. [°F] () | 167 °F |
| Process connection Male/Female () | Male |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Protection tube diameter [in] [max] () | 0.95 in |
| Protection tube diameter [in] [min] () | 0.55 in |
| Protection tube diameter [mm] [max] () | 24 mm |
| Protection tube diameter [mm] [min] () | 14 mm |
| In scope of WEEE and contain batteries () | No |
Product Description
Temperature sensor, MBT 5116, 80 mm, NPT,1/4-18, ANSI/ASME B1.20.1
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Temperature range [°C]: -50 - 600, Sensor element type: Pt, Sensor elem. resistance [Ohm]: 100, Protection tube material: AISI 316 Ti, Electrical connection: Deutsch DT04, Electrical connection size: 3 pin
