In Stock Hot Product
084N2032

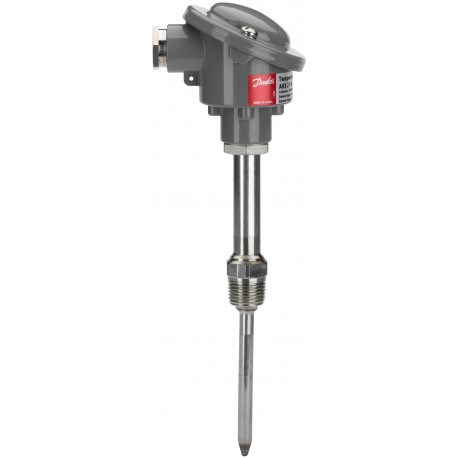

084N2032 DANFOSS REFRIGERATION Temperature sensor
$0.00USD
3746 in stock
Key Specifications
EAN ():5702422047872
Type ():AKS 21 W
Volume ():1.302 Liter
Cable type ():N/A
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702422047872 |
| Type () | AKS 21 W |
| Volume () | 1.302 Liter |
| Cable type () | N/A |
| Net weight () | 0.342 Kilogram |
| Wires [pcs] () | 2 pc |
| CE evaluated () | Yes |
| EEE category () | 5 small equipment (any external dimension50 cm) |
| Gross weight () | 0.353 Kilogram |
| Product group () | Sensors |
| Sensor Insert () | Exchangeable |
| Packing format () | Multi pack |
| Connection type () | NPT |
| In scope of WEEE () | Yes |
| EU RoHS compliance () | Yes with exemptions |
| UK RoHS compliance () | Out of scope |
| Connection standard () | ANSI/ASME B1.20 |
| Enclosure rating IP () | IP56 |
| Sensor element [pc] () | 1 pc |
| Sensor element type () | Pt |
| China RoHS compliance () | Out of scope |
| Electrical connection () | Type B |
| Process connection size () | 1/2-14 |
| Process connection type () | NPT |
| Sensor element standard () | EN 60751 |
| EU RoHS exemption clause () | 6(a)6(b)6(c)7(a)7(c)-I |
| Product Name Description () | Temperature sensor |
| Protection tube material () | Stainless steel |
| Sensor element tolerance () | Class B |
| Electrical connection size () | Pg 16 |
| Measuring range [°C] [max] () | 180 °C |
| Measuring range [°C] [min] () | -60 °C |
| Measuring range [°F] [max] () | 356 °F |
| Measuring range [°F] [min] () | -76 °F |
| Process connection standard () | ANSI/ASME B1.20 |
| Protection tube length [in] () | 6.3 in |
| Protection tube length [mm] () | 160 mm |
| Quantity per packing format () | 8 pc |
| Protection tube diameter [in] () | 0.32 in |
| Protection tube diameter [mm] () | 8 mm |
| Sensor elem. resistance [Ohm] () | 1000 |
| Ambient temperature max. [°C] () | 160 °C |
| Ambient temperature max. [°F] () | 320 °F |
| Process connection Male/Female () | Male |
| REACH Candidate List substances () | No |
| In scope of WEEE and contain batteries () | No |
Product Description
Sensor AKS 21 W 0.3m
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Sensor element type: Pt, Sensor elem. resistance [Ohm]: 1000, Protection tube material: Stainless steel, Electrical connection size: Pg 16
