In Stock Hot Product
084N2008

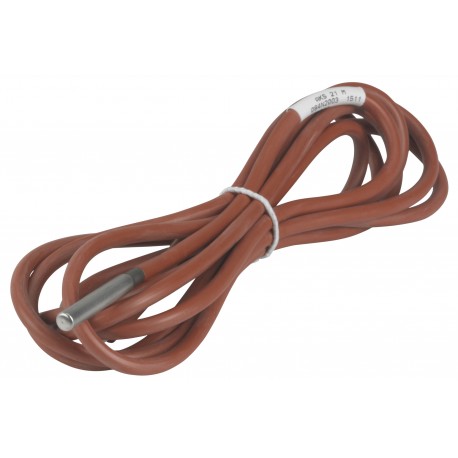

084N2008 DANFOSS REFRIGERATION Temperature sensor
$0.00USD
4640 in stock
Key Specifications
EAN ():5702422026563
Type ():AKS 21 A
Volume ():0.342 Liter
Cable type ():Silicone
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702422026563 |
| Type () | AKS 21 A |
| Volume () | 0.342 Liter |
| Cable type () | Silicone |
| Net weight () | 0.175 Kg |
| Wires [pcs] () | 2 pc |
| Gross weight () | 0.186 Kg |
| Product group () | Sensors |
| Sensor Insert () | Fixed |
| Packing format () | Multi pack |
| Cable length [m] () | 5 m |
| SCIP dossier no. () | fdf4160e-1955-41c0-8584-16b48c4e3655 |
| Cable length [in] () | 196.85 in |
| EU RoHS compliance () | Yes with exemptions |
| Enclosure rating IP () | IP67 |
| Sensor element [pc] () | 1 pc |
| Sensor element type () | Pt |
| Electrical connection () | Cable |
| Sensor element standard () | EN 60751 |
| Product Name Description () | Temperature sensor |
| Protection tube material () | Stainless steel |
| Sensor element tolerance () | Class B |
| Electrical connection size () | 2 wire |
| Measuring range [°C] [max] () | 200 °C |
| Measuring range [°C] [min] () | -60 °C |
| Measuring range [°F] [max] () | 392 °F |
| Measuring range [°F] [min] () | -76 °F |
| Protection tube length [in] () | 1.58 in |
| Protection tube length [mm] () | 40 mm |
| Quantity per packing format () | 24 pc |
| Protection tube diameter [in] () | 0.23 in |
| Protection tube diameter [mm] () | 5.8 mm |
| Sensor elem. resistance [Ohm] () | 1000 |
| Ambient temperature max. [°C] () | 180 °C |
| Ambient temperature max. [°F] () | 356 °F |
| Cable tempr. range [°C] [max] () | 200 °C |
| Cable tempr. range [°C] [min] () | -60 °C |
| REACH Candidate List substances () | Dodecamethylcyclohexasiloxane (D6, CAS no. 540-97-6) |
| In scope of WEEE and contain batteries () | No |
Product Description
Sensor AKS 21 A 5m Surface Sensor
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Measuring range [°C]: -60 - 200, Electrical connection: Cable, Cable type: Silicone
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
