084N1170

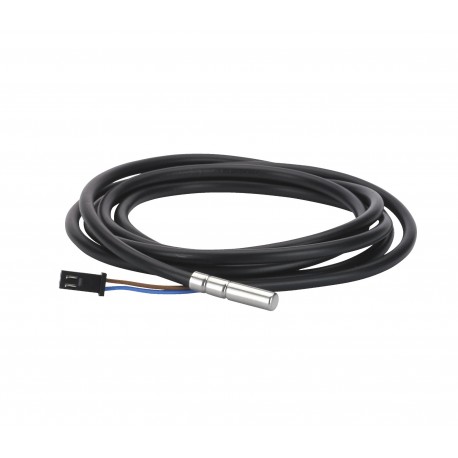

084N1170 DANFOSS REFRIGERATION Temperature sensor
$0.00USD
4038 in stock
Key Specifications
EAN:5702428062367
Cable type:PVC
Net weight:0.1 Kg
Wires [pcs]:2 pc
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 5702428062367 |
| Cable type | PVC |
| Net weight | 0.1 Kg |
| Wires [pcs] | 2 pc |
| Gross weight | 0.1 Kg |
| Product name | Temperature sensor |
| Product type | EKS 111 |
| Product Group | Sensors |
| Sensor Insert | Fixed |
| Packing format | Industrial pack |
| Cable length [m] | 3.5 m |
| Cable length [in] | 137.8 in |
| Sensor element [pc] | 1 pc |
| Sensor element type | PTC |
| Electrical connection | AMP |
| Protection tube material | Stainless steel |
| Sensor element tolerance | ± 1% |
| Electrical conn. comments | Cable |
| Electrical connection size | 2 wire |
| NTC Element characteristic | 1.000 Ohm/25°C |
| Measuring range [°C] [Max] | 150 °C |
| Measuring range [°C] [Min] | -55 °C |
| Measuring range [°F] [Max] | 302 °F |
| Measuring range [°F] [Min] | -67 °F |
| Protection tube length [in] | 1.18 in |
| Protection tube length [mm] | 30 mm |
| Quantity per packing format | 150 pc |
| Protection tube diameter [in] | 0.24 in |
| Protection tube diameter [mm] | 6 mm |
| Sensor elem. resistance [Ohm] | 1000 Ohm |
| Ambient temperature max. [°C] | 80 °C |
| Ambient temperature max. [°F] | 176 °F |
| Cable tempr. range [°C] [Max] | 80 °C |
| Cable tempr. range [°C] [Min] | -30 °C |
Product Description
Sensor EKS 111 3.5m AMP Plug I/150
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
