In Stock Hot Product
084N0045

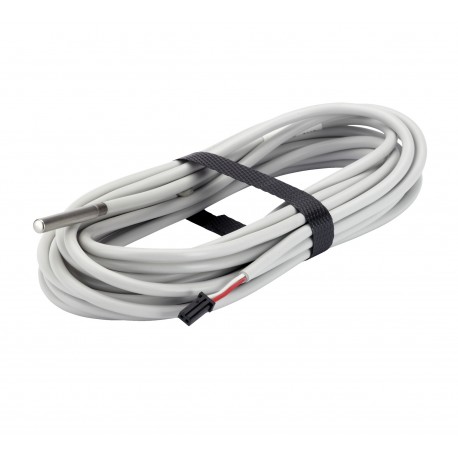

084N0045 DANFOSS REFRIGERATION Temperature sensor
$0.00USD
3483 in stock
Key Specifications
EAN ():5702428040112
Type ():AKS 12
Volume ():0.285 Liter
Cable type ():PVC
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428040112 |
| Type () | AKS 12 |
| Volume () | 0.285 Liter |
| Cable type () | PVC |
| Net weight () | 0.185 Kg |
| Wires [pcs] () | 2 pc |
| Gross weight () | 0.188 Kg |
| Product group () | Sensors |
| Sensor Insert () | Fixed |
| Packing format () | Multi pack |
| Cable length [m] () | 5.5 m |
| Cable length [in] () | 216.54 in |
| EU RoHS compliance () | Yes with exemptions |
| Enclosure rating IP () | IP67 |
| Sensor element [pc] () | 1 pc |
| Sensor element type () | Pt |
| Electrical connection () | AMP |
| Sensor element standard () | EN 60751 |
| Product Name Description () | Temperature sensor |
| Protection tube material () | Stainless steel |
| Sensor element tolerance () | Class B |
| Electrical conn. comments () | Cable |
| Electrical connection size () | 2 wire |
| Measuring range [°C] [max] () | 100 °C |
| Measuring range [°C] [min] () | -40 °C |
| Measuring range [°F] [max] () | 212 °F |
| Measuring range [°F] [min] () | -40 °F |
| Protection tube length [in] () | 1.58 in |
| Protection tube length [mm] () | 40 mm |
| Quantity per packing format () | 20 pc |
| Protection tube diameter [in] () | 0.23 in |
| Protection tube diameter [mm] () | 5.8 mm |
| Sensor elem. resistance [Ohm] () | 1000 |
| Ambient temperature max. [°C] () | 100 °C |
| Ambient temperature max. [°F] () | 212 °F |
| Cable tempr. range [°C] [max] () | 100 °C |
| Cable tempr. range [°C] [min] () | -40 °C |
| REACH Candidate List substances () | No |
| In scope of WEEE and contain batteries () | No |
Product Description
Sensor AKS 12 5.5m AMP Plug
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Measuring range [°C]: -40 - 100, Electrical connection: AMP, Cable type: PVC
