084H4566

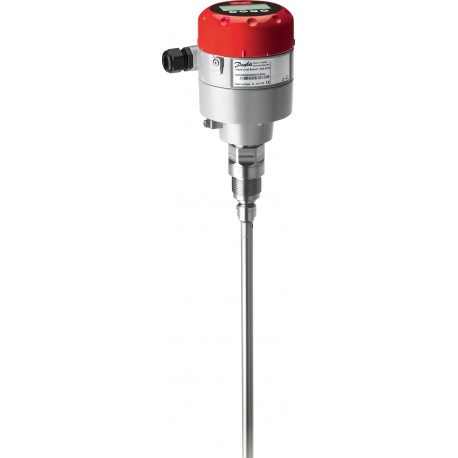

084H4566 DANFOSS REFRIGERATION Liquid level sensor
$0.00USD
3117 in stock
Key Specifications
EAN ():5702428869782
Type ():AKS 4100
Design ():Coaxial version
Volume ():65.377 Liter
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428869782 |
| Type () | AKS 4100 |
| Design () | Coaxial version |
| Volume () | 65.377 Liter |
| Approval () | CEEACLLC CDC TYSKUKCA |
| Net weight () | 2.9 Kg |
| Serviceable () | Liq. level switch spare parts |
| Gross weight () | 6.975 Kg |
| Refrigerants () | R134aR22R401AR402AR404AR407AR407BR407CR407FR409AR410AR421AR502R717R744R507A |
| Product group () | Sensors |
| Packing format () | Single pack |
| Parts included () | HMI with EN,JA,ZH,RU Language |
| Connection type () | G |
| EU RoHS compliance () | No - out of scope |
| Enclosure rating IP () | IP67 |
| Product accessories () | Liq. level switch accessories |
| Product description () | Liquid Level Sensor |
| Connection size [in] () | 1 |
| Insertion length [in] () | 86.6 in |
| Insertion length [mm] () | 2200 mm |
| Power consumption [W] () | 0.7 W |
| Output signal [mA] [max] () | 20 mA |
| Output signal [mA] [min] () | 4 mA |
| Product Name Description () | Liquid level sensor |
| Load resistance max. [Ohm] () | 500 |
| Max. Working Pressure [bar] () | 100 bar |
| Quantity per packing format () | 1 pc |
| Supply voltage [V] DC [max] () | 30 V |
| Supply voltage [V] DC [min] () | 14 V |
| Max. Working Pressure [psig] () | 1450 psig |
| Temperature range [°C] [max] () | 100 °C |
| Temperature range [°C] [min] () | -60 °C |
| Temperature range [°F] [max] () | 212 °F |
| Temperature range [°F] [min] () | -76 °F |
| REACH Candidate List substances () | No |
| Ambient temperature range [°C] [max] () | 80 °C |
| Ambient temperature range [°C] [min] () | -40 °C |
| Ambient temperature range [°F] [max] () | 176 °F |
| Ambient temperature range [°F] [min] () | -40 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
AKS 4100 Coaxial 2200 mm w/HMI Asia
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Design: Coaxial version, Parts included: HMI with EN,JA,ZH,RU Language, Connection size [in]: 1, Connection type: G, Insertion length [mm]: 2200, Supply voltage [V] DC: 14 - 30
