084H4500

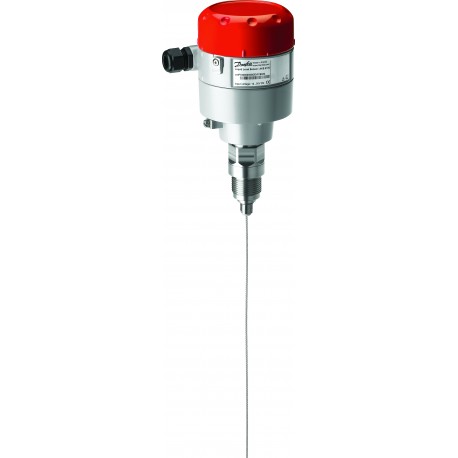

084H4500 DANFOSS REFRIGERATION Liquid level sensor
$0.00USD
3946 in stock
Key Specifications
EAN:5702428414890
Design:Cable version
Net weight:2.5 Kg
Gross weight:3.62 Kg
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 5702428414890 |
| Design | Cable version |
| Net weight | 2.5 Kg |
| Gross weight | 3.62 Kg |
| Product name | Liquid level sensor |
| Product type | AKS 4100 |
| Refrigerants | R134aR22R401AR402AR404AR407AR407BR407CR407FR409AR410AR421AR502R507R717 |
| Product Group | Sensors |
| Packing format | Single pack |
| Connection type | G |
| Enclosure rating IP | IP67 |
| Product description | Liquid Level Sensor |
| Connection size [in] | 1 |
| Insertion length [in] | 197 in |
| Insertion length [mm] | 5000 mm |
| Power consumption [W] | 0.7 W |
| Output signal [mA] [Max] | 20 mA |
| Output signal [mA] [Min] | 4 mA |
| Load resistance max. [Ohm] | 500 Ohm |
| Max. Working Pressure [bar] | 100 bar |
| Quantity per packing format | 1 pc |
| Supply voltage [V] DC [Max] | 30 V |
| Supply voltage [V] DC [Min] | 14 V |
| Max. Working Pressure [psig] | 1450 psig |
| Temperature range [°C] [Max] | 100 °C |
| Temperature range [°C] [Min] | -60 °C |
| Temperature range [°F] [Max] | 212 °F |
| Temperature range [°F] [Min] | -76 °F |
| Ambient temperature range [°C] [Max] | 80 °C |
| Ambient temperature range [°C] [Min] | -40 °C |
| Ambient temperature range [°F] [Max] | 176 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
Product Description
AKS 4100-5000 Liquid level transmitter
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
