084G2157

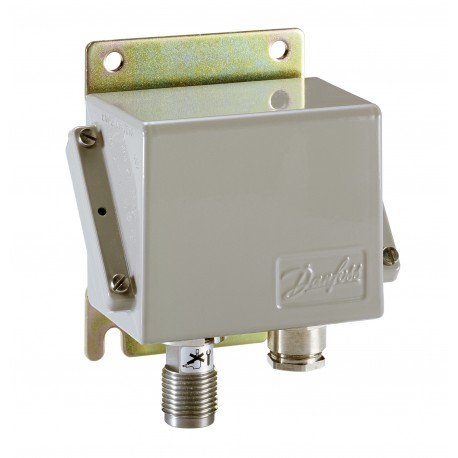

084G2157 DANFOSS CONTROLES INDUSTRIALES Pressure transmitter, EMP 2
$0.00USD
3424 in stock
Key Specifications
EAN ():5702423040254
Type ():EMP 2
Volume ():2.45 Liter
+ supply ():P
Supplier Information
DANFOSS INDUSTRIAL AUTOMATION
Products: 1269
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702423040254 |
| Type () | EMP 2 |
| Volume () | 2.45 Liter |
| + supply () | P |
| - common () | N |
| Approval () | ABSBVCCSDNVGLGOST POCCKRLRNNKRINA |
| Net weight () | 0.98 Kg |
| Gross weight () | 1.063 Kg |
| Output signal () | Current |
| Product group () | Sensors |
| Pulse-snubber () | No |
| Packing format () | Multi pack |
| Flush diaphragm () | No |
| SCIP dossier no. () | 6010d1e2-f473-4af2-afdd-bb494bdd0100 |
| Specification key () | EMP 2-E411-F6CD25-2 |
| EU RoHS compliance () | No - out of scope |
| Intrinsically safe () | No |
| Low Clipping level () | 3.6 |
| Pressure reference () | Gauge (relative) |
| Enclosure rating IP () | IP65 |
| High Clipping Level () | 22.4 |
| Pressure Male/Female () | Male |
| Electrical connection () | Terminal block |
| Accuracy, max. [±FS%] () | 1 % |
| Response time max. [ms] () | 4 ms |
| Output signal [mA] [max] () | 20 mA |
| Output signal [mA] [min] () | 4 mA |
| Pressure connection size () | 3/8 |
| Pressure connection type () | G |
| Product Name Description () | Pressure transmitter |
| Accuracy, typical [±FS%] () | 0.5 % |
| Pressure connection notes () | MANO EXT. |
| Electrical connection size () | Pg 13.5 |
| Non-linearity BFSL [±FS%] () | 0.3 % |
| Pressure range [bar] [max] () | 3.92 bar |
| Pressure range [bar] [min] () | 0 bar |
| Pressure range [psi] [max] () | 56.89 psi |
| Pressure range [psi] [min] () | 0 psi |
| Quantity per packing format () | 8 pc |
| Supply voltage [V] DC [max] () | 32 V |
| Supply voltage [V] DC [min] () | 12 V |
| International Article Number () | 5702423040254 |
| Pressure connection standard () | EN 837 |
| Overload press. max. [kp/cm2] () | 8 kp/cm² |
| Pressure range [kp/cm2] [max] () | 4 kp/cm² |
| Pressure range [kp/cm2] [min] () | 0 kp/cm² |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1)Dodecamethylcyclohexasiloxane (D6, CAS no. 540-97-6) |
| Compensated temp. range [°C] [max] () | 70 °C |
| Compensated temp. range [°C] [min] () | 0 °C |
| Compensated temp. range [°F] [max] () | 158 °F |
| Compensated temp. range [°F] [min] () | 32 °F |
| Medium temperature range [°C] [max] () | 70 °C |
| Medium temperature range [°C] [min] () | -10 °C |
| Medium temperature range [°F] [max] () | 158 °F |
| Medium temperature range [°F] [min] () | 14 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
Pressure transmitter, EMP 2, 0.00 bar - 3.92 bar, 0.00 psi - 56.89 psi
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Pressure reference: Gauge (relative), Output signal: Current, Electrical connection: Terminal block, Pressure connection type: G, Pressure connection size: 3/8, Specification key: EMP 2-E411-F6CD25-2
