084B8016

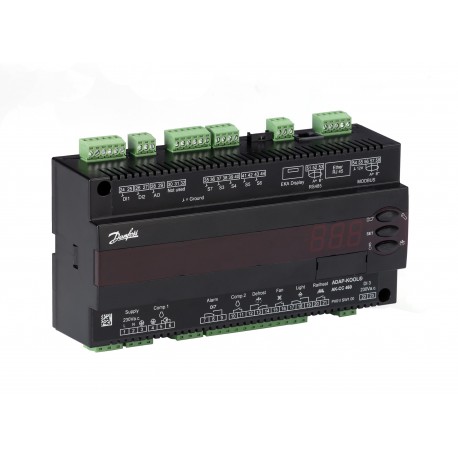

084B8016 DANFOSS REFRIGERATION Case/room controller (EEV)
$0.00USD
4063 in stock
Key Specifications
EAN ():5702428975360
Type ():AK-CC 460
Volume ():1.973 Liter
Approval ():C-TICKCEIntertek SemcoLLC CDC TYSKCMIM
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428975360 |
| Type () | AK-CC 460 |
| Volume () | 1.973 Liter |
| Approval () | C-TICKCEIntertek SemcoLLC CDC TYSKCMIM |
| Function () | Standard |
| Equipment () | Screw terminals |
| Net weight () | 0.53 Kilogram |
| Serviceable () | No |
| CE evaluated () | Yes |
| EEE category () | 5 small equipment (any external dimension50 cm) |
| Gross weight () | 0.661 Kilogram |
| Product group () | Evaporator and room control |
| Frequency [Hz] () | 50/60 Hz |
| Packing format () | Multi pack |
| Controller type () | Semi Plug-in Contr. (Temp.) |
| Application area () | Temperature control |
| Display - option () | EKA 163AEKA 163BEKA 164A |
| Display on front () | Yes |
| In scope of WEEE () | Yes |
| Sensor connection () | SCREW TERMINAL |
| Communication type () | MODBUSOptional LONOptional MODBUSOptional DANBUSS |
| EU RoHS compliance () | Out of scope |
| UK RoHS compliance () | Out of scope |
| Product accessories () | Electron. control accessories |
| China RoHS compliance () | Out of scope |
| Output voltage [V] AC () | 230 V |
| Supply voltage [V] AC () | 230 V |
| Power consumption [VA] () | 5 VA |
| Number of Sensor inputs () | 5 pc |
| Analog outputs (AO) [pc] () | 1 pc |
| Digital inputs (DI) [pc] () | 2 pc |
| Other RoHS documentation () | EAEU RoHS |
| Product Name Description () | Case/room controller (EEV) |
| Number of Compressors max. () | 2 pc |
| Number of Evaporators max. () | 1 pc |
| Quantity per packing format () | 10 pc |
| REACH Candidate List substances () | No |
Product Description
AK-CC 460, Semi Plug-in Contr. 230V
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Function: Standard, Supply voltage [V] AC: 230, Communication type: Optional MODBUS; MODBUS; Optional DANBUSS; Optional LON, Packing format: Multi pack, Quantity per packing format: 10
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
