In Stock Hot Product
082X3101

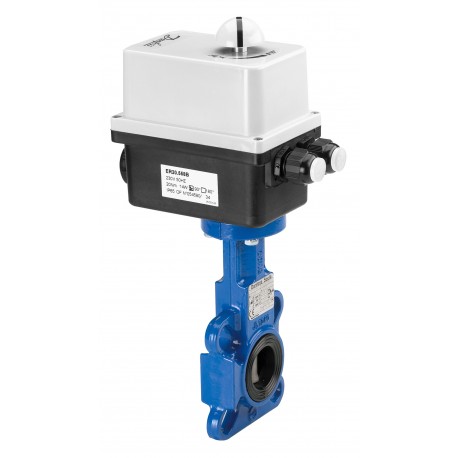

082X3101 DANFOSS HEATING VFY-WA PN16 DN450 DI/EP/EPDM 230V
$0.00USD
3795 in stock
Key Specifications
EAN ():5702428970495
Type ():VFY-WA
Volume ():609.6 Liter
Function ():On/off
Supplier Information
DANFOSS HEATING
Products: 5013
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428970495 |
| Type () | VFY-WA |
| Volume () | 609.6 Liter |
| Function () | On/off |
| Net weight () | 108.5 Kilogram |
| Valve size () | DN 450 |
| Description () | VFY-WA PN16 DN450 DI/EP/EPDM 230V |
| Gross weight () | 135.25 Kilogram |
| Label product () | Yes |
| Product group () | Butterfly valves |
| Operation type () | Electric actuator |
| Pressure class () | PN 16 |
| Connection types () | Wafer |
| EU RoHS compliance () | Out of scope |
| Grade of enclosure () | IP68 |
| UK RoHS compliance () | Out of scope |
| Diameter [mm] [Max] () | 450 mm |
| China RoHS compliance () | Out of scope |
| Operating torque [Nm] () | 1000 N-m |
| Supply voltage [V] AC () | 230 V |
| Pressure nominal [bar] () | 16 bar |
| Media temperature [°C] [Max] () | 130 °C |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| In scope of WEEE and contain batteries () | No |
Product Description
Butterfly valves, VFY-WA, Electric actuator, Supply voltage [V] AC: 230, Wafer
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
VFY-WA PN16 DN450 DI/EP/EPDM 230V
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
