082H8058

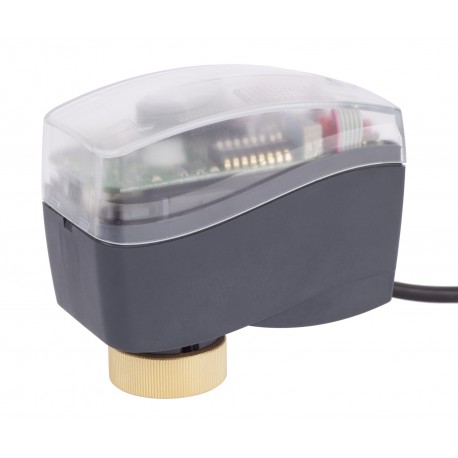

082H8058 DANFOSS HEATING AMV 120 NL 24V 12s/mm 5,5mm 130N
$0.00USD
4993 in stock
Key Specifications
EAN ():5702421556627
Type ():AMV 110/120 NL 3-point
Volume ():1 Liter
Net weight ():0.329 Kilogram
Supplier Information
DANFOSS HEATING
Products: 5013
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702421556627 |
| Type () | AMV 110/120 NL 3-point |
| Volume () | 1 Liter |
| Net weight () | 0.329 Kilogram |
| Description () | AMV 120 NL, 24 V, 5 mm, actuator for three point control for AB-QM DN 10-32 |
| Stroke [mm] () | 5 mm |
| Gross weight () | 0.329 Kilogram |
| Product group () | Gear actuators |
| Cable length [m] () | 1.5 m |
| SCIP dossier no. () | 1a7d963c-4bcb-4cdc-9664-6ba05408d797 |
| Approval standard () | EC EN 60730 |
| EU RoHS compliance () | Yes with exemptions |
| UK RoHS compliance () | Out of scope |
| Control signal type () | 3-point |
| IP protection class () | IP42 |
| Spindle speed [s/mm] () | 12 s/mm |
| China RoHS compliance () | Out of scope |
| Supply voltage [V] AC () | 24 V |
| EU RoHS exemption clause () | 6(c) |
| SCIP dossier product name () | AMI. AME/AMV (1) |
| Compatibility with AB-QM size () | DN 10-32 |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| In scope of WEEE and contain batteries () | No |
Product Description
AMV 110/120 NL 3-point, Supply voltage [V] AC: 24, 12 s/mm, 5.00 mm, 1.500 m
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
AMV 120 NL, 24 V, 5 mm, actuator for three point control for AB-QM DN 10-32
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
